SELECT A DIAGRAM
New Model Search:

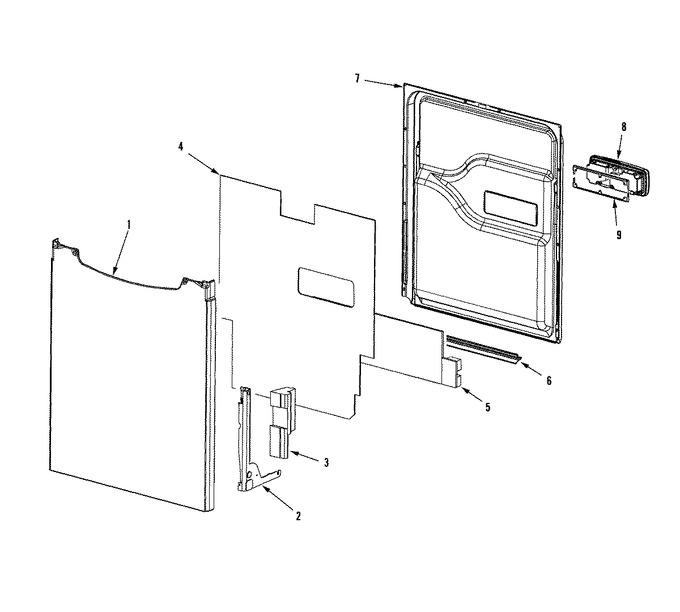

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 99002771 | Panel, Deco (w/damper-stnls) | 10 |
|
- | ||||
| 2 | WPW10118637 | Bracket, Hinge (rt) (Replaces: 99002930) | 10 |
|
$ 233.73 | ||||
| 2 | 99001075 | Screw | 10 |
|
$ 5.81 | ||||
| 2 | 99002929 | Bracket, Hinge (lt) | 10 |
|
- | ||||
| 2 | 99003049 | Wrap, Foam | 10 |
|
$ 18.96 | ||||
| 3 | 99003047 | Block, Foam (rt) | 10 |
|
- | ||||
| 3 | 99003046 | Block, Foam (lt) | 10 |
|
- | ||||
| 4 | 99003044 | Insulation, Door | 10 |
|
$ 26.70 | ||||
| 5 | 99003048 | Barrier, Foam | 10 |
|
- | ||||
| 6 | 99003045 | Seal, Door (btm) | 10 |
|
$ 38.59 | ||||
| 7 | 99003140 | Door, Inner (w/damper) | 10 |
|
- | ||||
| 7 | Y912620 | Screw | 10 |
|
$ 5.48 | ||||
| 8 | 99003317 | Rinse Aid/detergent Dispenser | 10 |
|
$ 115.46 | ||||
| 8 | WP99002614 | Knob, Rinse Aid (w/o-ring) (Replaces: 99002614) | 10 |
|
$ 18.19 | ||||
| 8 | 99002270 | Seal, Base | 10 |
|
$ 59.76 | ||||
| 9 | WP33002917 | Screw, No.8x1/2 Hex Washer Head (Replaces: 912615) | 10 |
|
Immediately | $ 6.90 | |||
| 9 | 99002465 | Bracket, Dispenser | 10 |
|
- |
