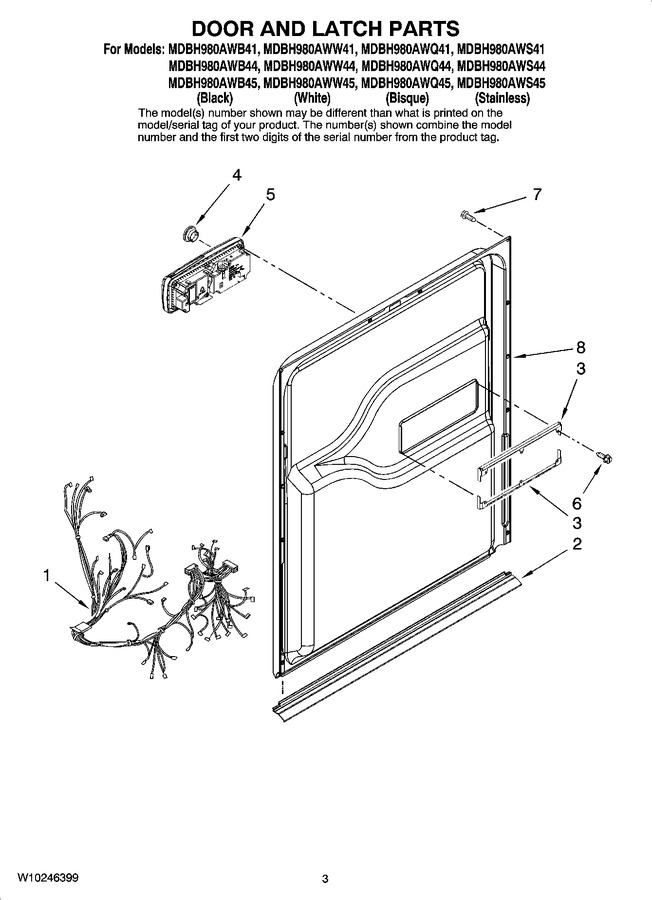

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 99003308 Harness, Wiring Appelez-nous -
2 99003045 Seal, Door (bottom) Special Order $ 38.59

3 99002465 Bracket, Dispenser Appelez-nous -
4 99002992 Cap, Rinse Aid Special Order $ 19.99

5 99003322 Dispenser, Rinse Aid Appelez-nous -
6 WP33002917 Screw   (Replaces: 912615) In-Stock Immediately $ 6.90

7 Y912620 Screw, Door Special Order $ 5.48

8 W10203662 Inner Door W/ Damper Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List
