Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10283681 Heater Element Assembly W/ Gasket   (Replaces: 99002971) Special Order $ 118.85

2 WP6-920168 Nut, Heater   (Replaces: 99003771) Special Order $ 2.66

3 99003032 Bracket, Heater Support Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

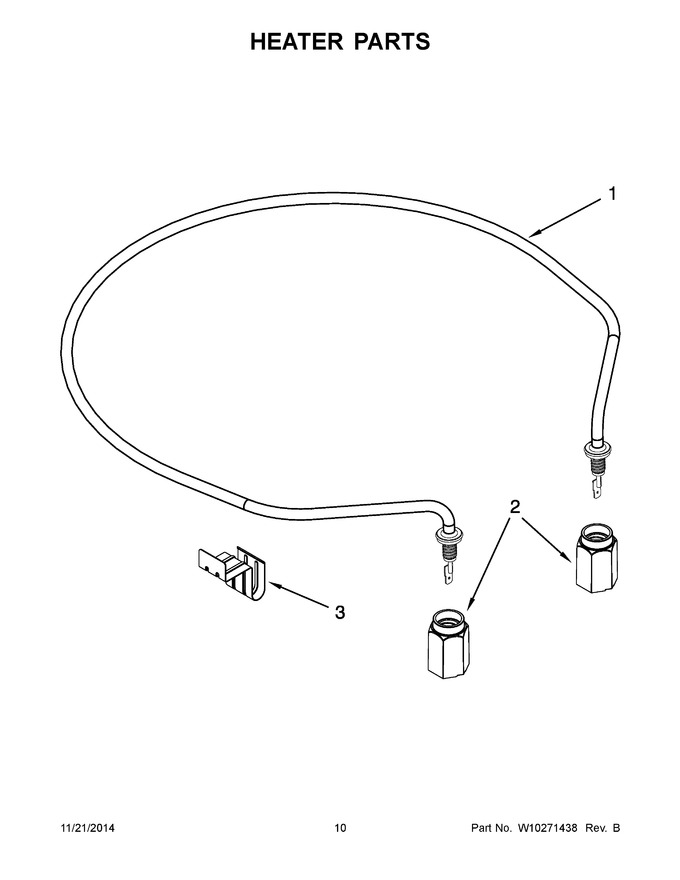

Diagram for MDBH980AWS1
