Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10129045 Dishrack, Upper Appelez-nous -
2 W10144736 Rail, Inner Slide Special Order $ 38.06

3 99003072 Clip, Upper Wash Manifold (front) Special Order $ 5.25

4 99003071 Clip, Upper Wash Manifold (back) Special Order $ 19.68

5 99003142 Wash Manifold (upper) Appelez-nous -
6 99003070 Arm, Wash (upper) Special Order $ 32.43

7 W10129049 Dishrack, Lower Appelez-nous -
8 WP99003149 Wheel Assembly (lower)   (Replaces: 99003149) In-Stock Immediately $ 11.48

9 WP99003148 Wheel Assembly, Upper   (Replaces: 99003148) In-Stock Immediately $ 8.51

10 WP6-918873 Basket, Silverware   (Replaces: 99003269) In-Stock Immediately $ 54.28

11 99003249 Clip, Cup Appelez-nous -
12 W10169391 Stop, Rail Special Order $ 5.85

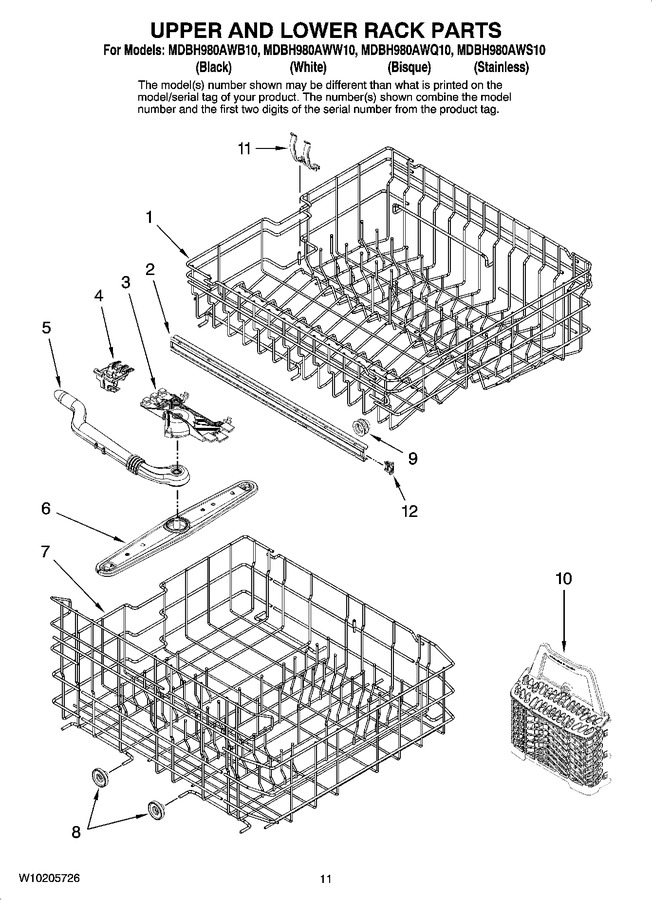

    View Diagram in Separate Window     Print Icon   Print Part List
