SELECT A DIAGRAM

01 - Oven


02 - Control Panel, Lit/optional


03 - Oven Door


04 - Component Shelf And Latch


05 - Internal Oven


06 - Convection Fan


07 - Microwave Compartment


08 - Magnetron And Airflow


09 - Cavity And Turntable


10 - Cabinet


11 - Door And Latch


12 - Microwave Control Panel


13 - Wiring Harness, Optional

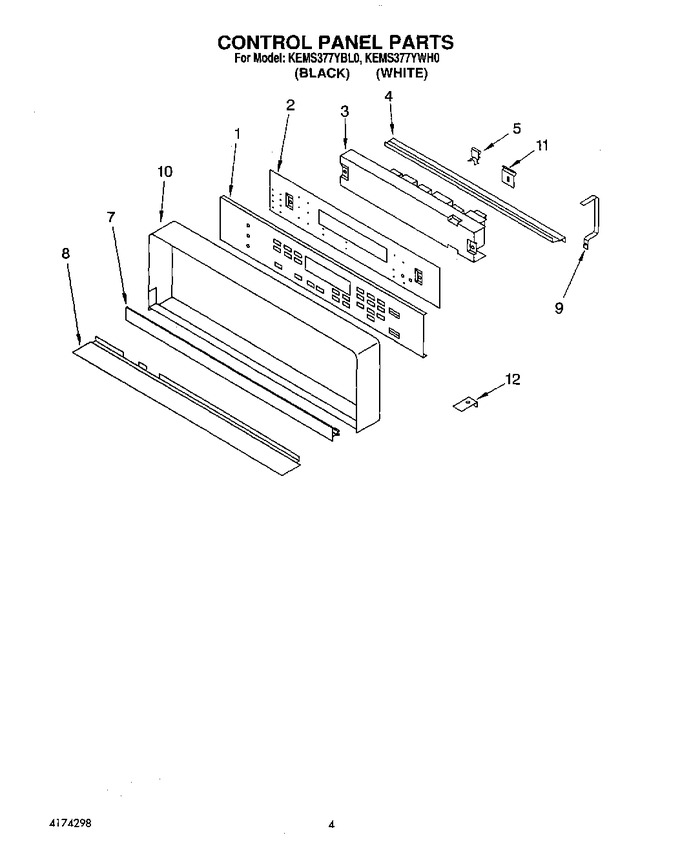

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3181780		Membrane, Switch (black Model)		Appelez-nous	-
1	3181781		Membrane, Switch (white, Model)		Appelez-nous	-
2	3183794		Bracket, Mounting Switch Membrane		Appelez-nous	-
3	3181703		Microcomputer		Appelez-nous	-
4	3182939		Screw		Appelez-nous	-
4	3183705		Retainer, Bracket		Appelez-nous	-
5	3182985		Clip, Retainer		Appelez-nous	-
7	3183599		Trim, Panel (white Model)		Appelez-nous	-
7	3183597		Trim, Panel (black Model)		Appelez-nous	-
8	3184516		Trim, Panel		Appelez-nous	-
9	3184321		Bracket		Appelez-nous	-
10	3182148		Frame, Control Panel		Appelez-nous	-
11	3184567		Clip, Control Frame		Appelez-nous	-
12	3180844		Clip, Spacer		Appelez-nous	-
12	3179117		Screw		Appelez-nous	-
	LIT3184440		Tech Sheet		Appelez-nous	-
	LIT4174298		Repair Parts List		Appelez-nous	-
	LIT4357919		Cookbook Microwave		Appelez-nous	-
	LIT3150693		Cookbook T/c Oven		Appelez-nous	-
	LIT3184434		Use & Care Guide (microwave)		Appelez-nous	-
	LIT3184437		Use & Care Guide (oven)		Appelez-nous	-
	LIT3184435		Installation Instructions		Appelez-nous	-
