SELECT A DIAGRAM

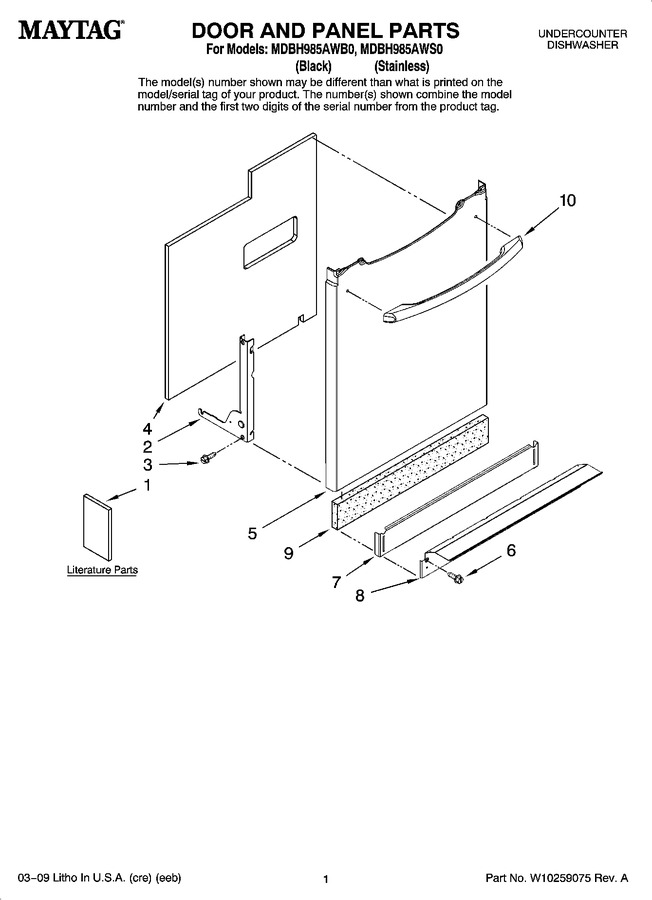

01 - Door And Panel Parts


02 - Control Panel Parts


03 - Door And Latch Parts


04 - Lower Washarm Parts


05 - Heater Parts


06 - Fill And Overfill Parts


07 - Tub And Frame Parts


08 - Pump And Motor Parts


09 - Upper And Lower Rack Parts


10 - Upper Wash And Rinse Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10158012		Instructions, Installation		Appelez-nous	-
1	W10208024		Energy Guide		Appelez-nous	-
1	W10157789		Guide, Use & Care		Appelez-nous	-
2	WPW10118637		Bracket, Hinge (left)   (Replaces: W10118637)				$ 233.73
2	W10118638		Bracket, Hinge (right)				$ 109.77
3	99001075		Screw				$ 5.81
4	Y99002587		Pad, Foam		Appelez-nous	-
5	99003090		Panel, Front (black)		Appelez-nous	-
5	W10166535		Panel, Front (stainless)		Appelez-nous	-
6	WP6-912366		Screw   (Replaces: 912366)				$ 7.29
7	99002765		Panel, Toe (black)		Appelez-nous	-
8	99002859		Support, Front (black)		Appelez-nous	-
9	WP6-920587		Insulation, Toe Panel   (Replaces: 99002414)				$ 6.35
10	W10114992		Handle, Door (s. Stl)		Appelez-nous	-
10	W10114990		Handle, Door (black)		Appelez-nous	-
