Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 08011338 Screw (4) Appelez-nous -
2 3281175 Hinge (2) Special Order $ 10.16

3 3281041 Screw (2) Appelez-nous -
4 5303281043 Screw Appelez-nous -
5 3281042 Cover-terminal Block Appelez-nous -
6 3281040 Bracket Appelez-nous -
7 3281024 Screw (2) Appelez-nous -
8 134101400 Terminal Block   (Replaces: 5303208585) In-Stock Immediately $ 55.99

9 5303281035 Screw (2) Appelez-nous -
10 5303281018 Cover Plate Appelez-nous -
11 5303010202 Screw (4) Special Order $ 5.15

12 5303269964 Cabinet Assy-almond Appelez-nous -
13 3281008 Bearing (parts Contained In Rear Bearing Kit.) Appelez-nous -
14 131724301 Bracket-bearing Support (parts Contained In Rear Bearing   (Replaces: 5303281023) In-Stock Immediately $ 25.66

15 5303281033 Screw (2) (parts Contained In Rear Bearing Kit.) Appelez-nous -
16 5303281113 Thermostat Special Order $ 93.28

17 5303281035 Screw (2) Appelez-nous -
18 3202753 Drum Appelez-nous -
19 137552900 Vane (3)   (Replaces: 5303201200) Special Order $ 54.95

20 131382300 Screw (9)   (Replaces: 3202754) In-Stock Immediately $ 13.46

21 3281029 Screw (3) Appelez-nous -
22 3281027 Screw (3) (parts Contained In Rear Bearing Kit.) Appelez-nous -
23 5303201198 Baffle Appelez-nous -
24 5303201009 Shaft (parts Contained In Rear Bearing Kit) Appelez-nous -
25 3937010 Heater Assy   (Replaces: 5303269829) In-Stock Immediately $ 193.49

26 5303281032 Foot Bolt (4) Appelez-nous -
27 3201202 Grommet (4) Special Order $ 22.47

28 5303010202 Screw (4) Special Order $ 5.15

29 5303281020 Nut-flat (parts Contained In Rear Bearing Kit.) Special Order $ 17.01

30 5303281019 Ball (parts Contained In Rear Bearing Kit.) Special Order $ 16.30

31 3281106 Ground Screw Appelez-nous -
32 3281107 Ground Washer Appelez-nous -
33 134120900 Thermal Limiter   (Replaces: 5303209192) In-Stock Immediately $ 13.21

34 08010804 Screw Appelez-nous -
32A 5303281153 Rear Bearing Kit (non-illustrated) In-Stock Immediately $ 46.64


    View Diagram in Separate Window     Print Icon   Print Part List

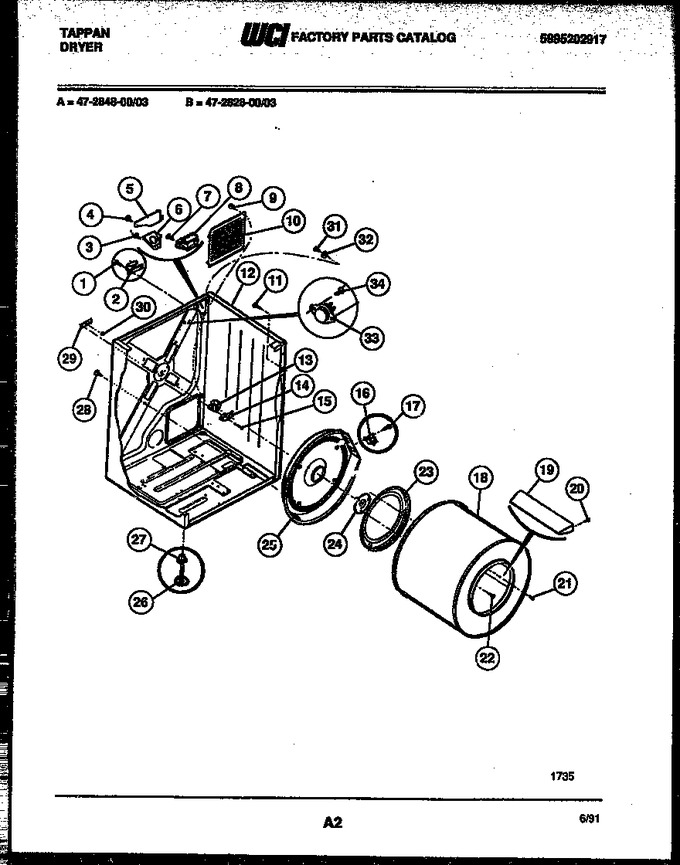

Diagram for 47-2848-23-03
