SELECT A DIAGRAM

01 - Oven


02 - Convection Fan


03 - Control Panel, Literature


04 - Oven Door


05 - Component Shelf And Latch


06 - Cabinet And Stirrer, Optional


07 - Internal Oven


08 - Microwave Compartment


09 - Magnetron And Air Flow


10 - Cabinet


11 - Door And Latch


12 - Microwave Control Panel


13 - Wiring Harness

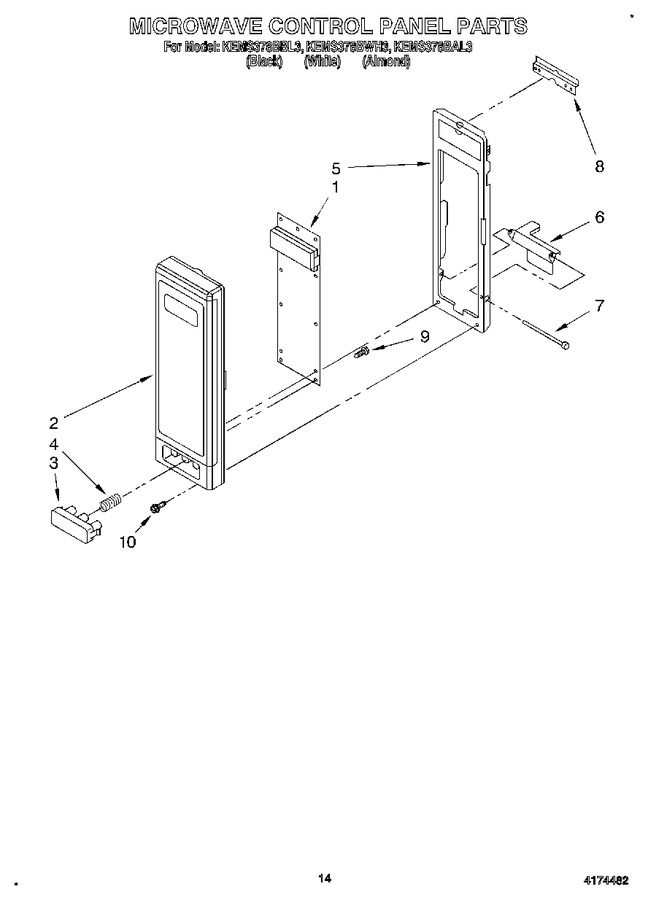

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4312961		Microcomputer		Appelez-nous	-
2	4312967		Frame, Control Panel (white)		Appelez-nous	-
2	4312968		Frame, Control Panel (almond)		Appelez-nous	-
2	4312966		Frame, Control Panel (black)		Appelez-nous	-
3	4312973		Push Button (white)		Appelez-nous	-
3	4312974		Push Button (almond)		Appelez-nous	-
3	4312972		Push Button (black)		Appelez-nous	-
4	4312975		Spring, Button		Appelez-nous	-
5	4312852		Plate, Mounting		Appelez-nous	-
6	4312853		Release Lever		Appelez-nous	-
7	4312854		Mounting Pin		Appelez-nous	-
8	4312855		Bracket, Mounting		Appelez-nous	-
9	4312920		Screw (5)		Appelez-nous	-
10	4312921		Screw (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
