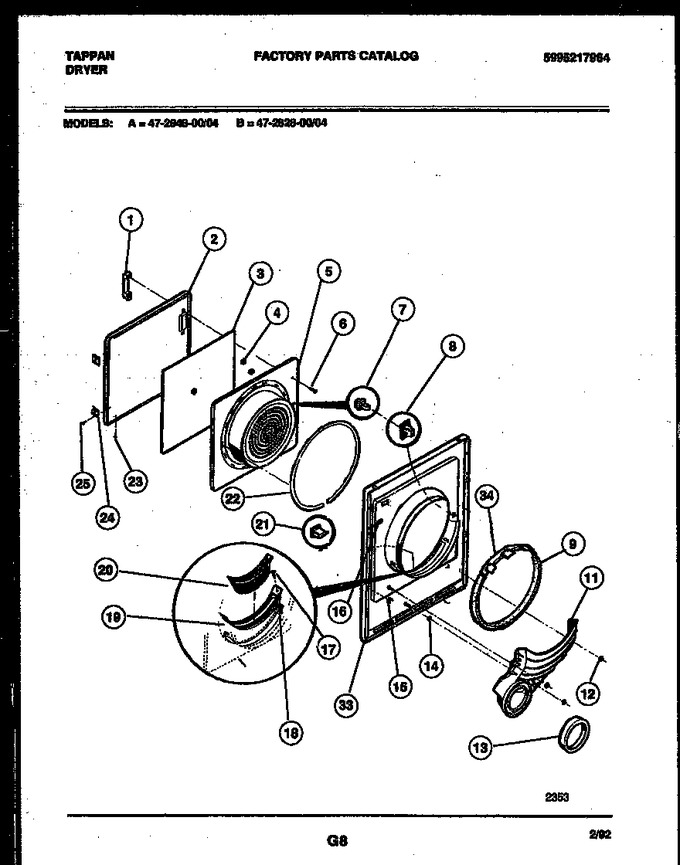

02 - Cabinet And Component Parts
03 - Door Parts
04 - Console And Control Parts
05 - Blower And Drive Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303281053 | Handle |
|
- | |||||
| 2 | 3201204 | Outer Door-almond |
|
- | |||||
| 3 | 5303281067 | Heat Shield |
|
- | |||||
| 4 | 3201205 | Spacer |
|
- | |||||
| 4 | 3281058 | Spacer (2) |
|
- | |||||
| 5 | 3201207 | Inner Door, Almond |
|
- | |||||
| 6 | 3281051 | Screw |
|
- | |||||
| 7 | 5303207102 | Door Strike (Replaces: 5303211430) |
|
Immediately | $ 19.85 | ||||
| 8 | 3202755 | Door Catch |
|
- | |||||
| 9 | 3281049 | Seal |
|
- | |||||
| 11 | 08015173 | Air Duct |
|
- | |||||
| 12 | 3281089 | Nut (3) |
|
- | |||||
| 13 | 134417000 | Seal (Replaces: 5303281013) |
|
Immediately | $ 9.22 | ||||
| 14 | 3201209 | Washer |
|
- | |||||
| 15 | 5303281074 | Clip Guide (4) |
|
$ 18.27 | |||||
| 16 | 5303281039 | Clip (4) |
|
$ 8.09 | |||||
| 17 | 3281178 | Screw (2) |
|
- | |||||
| 18 | 3281102 | Clip (2) |
|
- | |||||
| 19 | 5303281060 | Lint Trap Frame |
|
- | |||||
| 20 | 3281059 | Lint Trap |
|
- | |||||
| 21 | 5308001614 | Door Switch |
|
- | |||||
| 22 | 5303201210 | Door Gasket |
|
$ 45.68 | |||||
| 23 | 3281176 | Screw (2) |
|
- | |||||
| 24 | 5303281050 | Door Hinge (2) |
|
$ 20.58 | |||||
| 25 | 3281176 | Screw (8) |
|
- | |||||
| 33 | 5303937093 | Front Panel-almond |
|
- | |||||
| 34 | 5303288285 | Drum-glide |
|
- |
