SELECT A DIAGRAM

01 - Body


02 - Door


03 - Oven/base


04 - Top Assembly


05 - Wiring Information


06 - Wiring Information

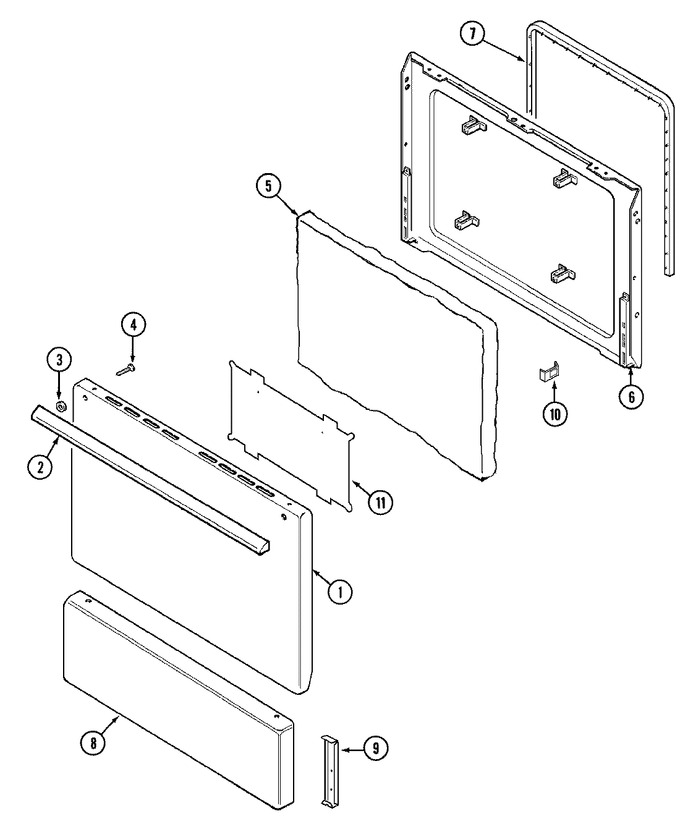

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2401F096-71		Panel, Door (wht)	10	Appelez-nous	-
1	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
2	WP2411F013-70		Handle, Door (chr)   (Replaces: 74001819)	17			$ 186.01
2	7701P030-60		Handle, Door (chr)	10	Appelez-nous	-
3	8010P084-60		Spacer, Handle (blk)	10	Appelez-nous	-
4	WP3387230		Screw, Clamp   (Replaces: 7101P080-60)	10		Immediately	$ 7.69
5	4804F050-60		Insulation, Door 2``	10	Appelez-nous	-
6	2402W211-19		Lining, Door	10	Appelez-nous	-
7	WP7212P043-60		Seal, Door   (Replaces: 7212P043-60)	10		Immediately	$ 56.83
7	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
8	2403F034-71		Panel, Lower (wht)	10	Appelez-nous	-
9	3801F278-51		Bracket, Panel	10	Appelez-nous	-
10	7112P034-60		Clip, Door	10	Appelez-nous	-
11	3601F250-51		Baffle, Door	10	Appelez-nous	-
11	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62

    View Diagram in Separate Window       Print Part List
