Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 99002575 Housing, Board (top) Special Order $ 20.11

2 W10218837 Board, Control Special Order $ 190.12

3 W10218834 Housing, Board Special Order $ 189.28

4 6-919819 Panel- Control (black) Special Order $ 157.43

4 6-919821 Panel- Control (white) Appelez-nous -
4 6-919820 Panel- Control (bisque) Appelez-nous -
5 99002751 Switch, Door Special Order $ 23.02

6 WPW10275768 Latch Assembly   (Replaces: 99003347) In-Stock Immediately $ 79.15

7 99003222 Vent Seal, Control Panel Special Order $ 8.61


    View Diagram in Separate Window     Print Icon   Print Part List

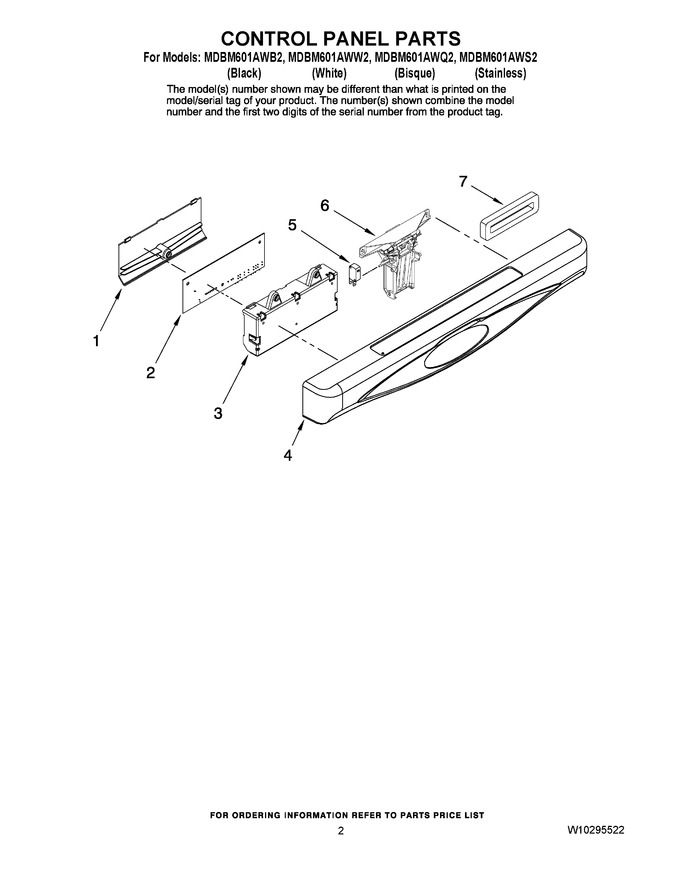

Diagram for MDBM601AWQ2
