New Model Search:

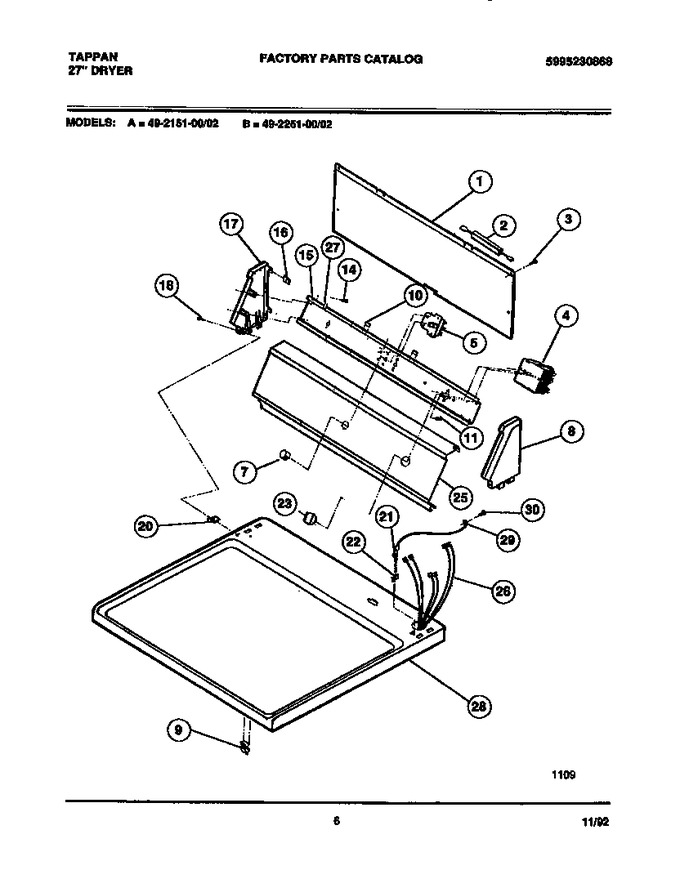

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3205898 | Cover |
|
- | |||||
| 3 | 5303015671 | Screw (4) |
|
- | |||||
| 4 | 5303290977 | Timer |
|
- | |||||
| 5 | 3201219 | Switch - Start |
|
- | |||||
| 7 | 3201220 | Pushbutton |
|
- | |||||
| 8 | 3205978 | End Cap-rh |
|
$ 46.83 | |||||
| 9 | 3205821 | Spring Catch |
|
Immediately | $ 35.44 | ||||
| 10 | 5303281201 | Pad (2) |
|
- | |||||
| 11 | 218359202 | Screw (2) (Replaces: 5303283289) |
|
$ 10.63 | |||||
| 14 | 5303015671 | Screw (4) |
|
- | |||||
| 15 | 5303285145 | Bracket-controls |
|
- | |||||
| 16 | 5308014350 | Clip (8) |
|
- | |||||
| 17 | 3205979 | End Cap-lh |
|
- | |||||
| 18 | 5303289526 | Screw (2) |
|
- | |||||
| 21 | 08001689 | Screw |
|
- | |||||
| 22 | 5379171000 | Terminal |
|
- | |||||
| 23 | 5303270992 | Knob-timer |
|
- | |||||
| 25 | 131029500 | Panel-control |
|
- | |||||
| 26 | 131005400 | Harness |
|
- | |||||
| 27 | 3281200 | Clip-ground |
|
- | |||||
| 28 | 5303273261 | Panel-top-white |
|
- | |||||
| 29 | 3201308 | Ground Wire |
|
- | |||||
| 30 | 3281120 | Ground Screw |
|
- | |||||
| 26A | 5303281103 | Wire Tie (non-illustrated) |
|
- |
