SELECT A DIAGRAM

Diagram for 01 - Cover Sheet
01 - Cover Sheet

Diagram for 02 - Door And Panel Parts
02 - Door And Panel Parts

Diagram for 03 - Control Panel Parts
03 - Control Panel Parts

Diagram for 04 - Door And Latch Parts
04 - Door And Latch Parts

Diagram for 05 - Lower Washarm Parts
05 - Lower Washarm Parts

Diagram for 06 - Fill And Overfill Parts
06 - Fill And Overfill Parts

Diagram for 07 - Tub And Frame Parts
07 - Tub And Frame Parts

Diagram for 08 - Pump And Motor Parts
08 - Pump And Motor Parts

Diagram for 09 - Upper And Lower Rack Parts
09 - Upper And Lower Rack Parts

Diagram for 10 - Upper Wash And Rinse Parts
10 - Upper Wash And Rinse Parts

Diagram for 11 - Optional Parts (not Included)
11 - Optional Parts (not Included)


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10237911 Harness, Wire Special Order $ 118.22

2 99002590 Bezel Special Order $ 72.78

3 99002186 Seal Special Order $ 7.89

4 WP99002614 Cap, Rinse Aid   (Replaces: 99002614) Special Order $ 18.19

5 99003317 Dispenser, Rinse Aid Special Order $ 115.46

6 W10190890 Vent Assembly Special Order $ 84.95

7 Y912620 Screw, Door Special Order $ 5.48

8 99002680 Inner Door W/ Damper Special Order $ 29.74

9 99003316 Bracket, Dispenser Appelez-nous -
10 WP33002917 Screw   (Replaces: 912615) In-Stock Immediately $ 6.90


    View Diagram in Separate Window     Print Icon   Print Part List

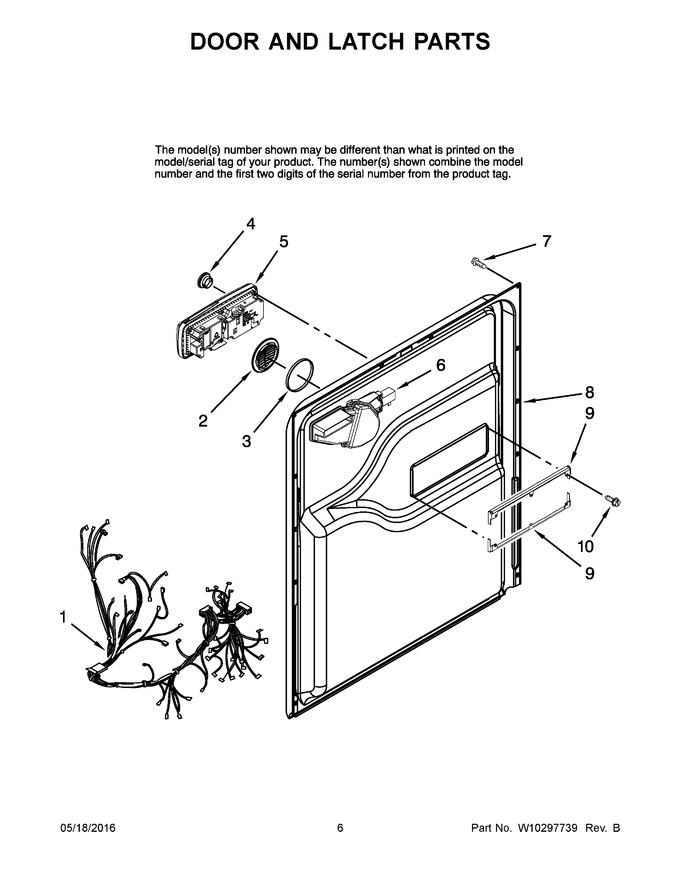

Diagram for MDBM601AWW3
