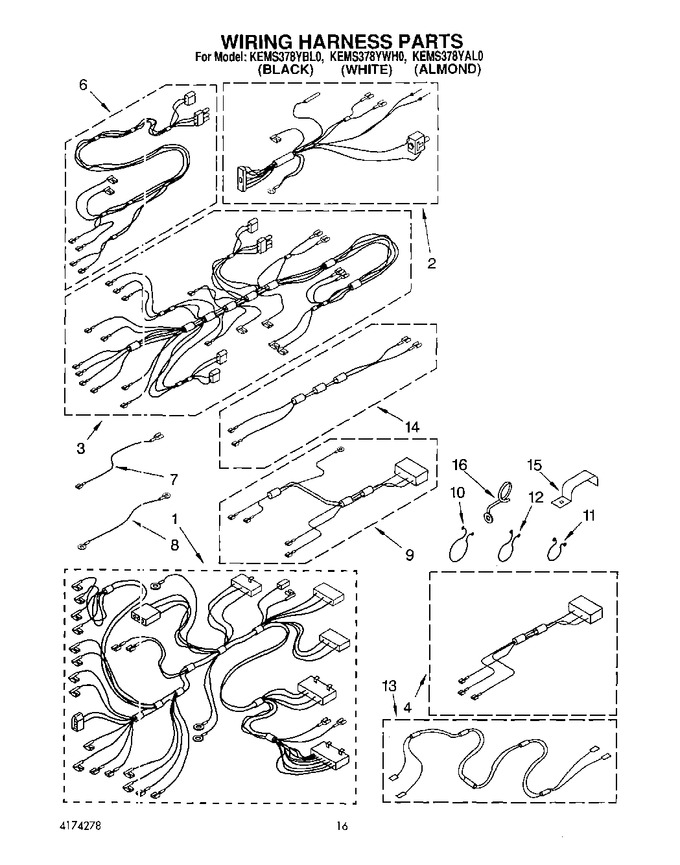

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3184750		Harness, Wiring (main Oven)		Appelez-nous	-
2	4312950		Harness, Wiring (jack Assembly)		Appelez-nous	-
3	4313003		Harness, Wiring (main Microwave)		Appelez-nous	-
4	3184819		Harness, Wiring (latch, Combo) (base Plate)		Appelez-nous	-
7	4313005		Wire, Jumper		Appelez-nous	-
8	4312912		Wire, Ground		Appelez-nous	-
9	3184821		Harness, Wire (microwave Power)		Appelez-nous	-
10	4313010		Clip, Harness		Appelez-nous	-
11	4313009		Clip, Harness		Appelez-nous	-
12	4313008		Clip, Harness		Appelez-nous	-
13	3185130		Harness, Wire (light Switch)		Appelez-nous	-
14	3184822		Harness, Wiring (combo-probe)		Appelez-nous	-
15	WP112432		Nut, Hex (3)   (Replaces: 112432)				$ 7.16
15	7111P002-60		Clamp, Wire   (Replaces: 4159037)		Appelez-nous	-
16	3179668		Standoff, Wireform (2)		Appelez-nous	-
