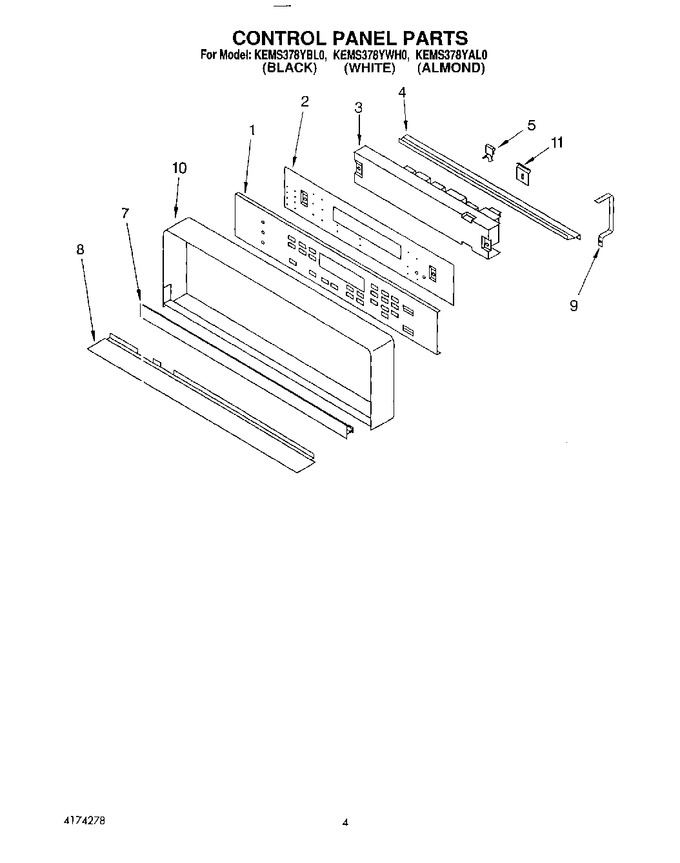

SELECT A DIAGRAM

01 - Oven


02 - Convection Fan


03 - Control, Literature


04 - Oven Door


05 - Component Shelf And Latch


06 - Cabinet And Stirrer, Optional


07 - Internal Oven


08 - Microwave Compartment


09 - Magnetron And Air Flow


10 - Cabinet


11 - Door And Latch


12 - Microwave Control Panel


13 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3181780		Membrane, Switch (black Model)		Appelez-nous	-
1	3181781		Membrane, Switch (white, Model)		Appelez-nous	-
1	3181782		Membrane, Switch (almond, Model)		Appelez-nous	-
2	3183794		Bracket, Mounting Switch Membrane		Appelez-nous	-
3	3181703		Microcomputer		Appelez-nous	-
4	3183705		Retainer, Bracket		Appelez-nous	-
4	3182939		Screw		Appelez-nous	-
5	3182985		Clip, Retainer		Appelez-nous	-
7	3183598		Door, Latch Handle (almond Model)		Appelez-nous	-
7	3183599		Door, Latch Handle (white Model)		Appelez-nous	-
7	3183597		Door, Latch Handle (black Model)		Appelez-nous	-
8	318518		Trim, Panel (almond)		Appelez-nous	-
8	318516		Trim, Panel (black)		Appelez-nous	-
8	318517		Trim, Panel (white)		Appelez-nous	-
9	3184321		Bracket		Appelez-nous	-
10	3182148		Frame, Control Panel		Appelez-nous	-
11	3184567		Clip, Control Frame		Appelez-nous	-
11	3179117		Screw		Appelez-nous	-
	LIT3184435		Installation Instructions		Appelez-nous	-
	LIT3184524		Tech Sheet		Appelez-nous	-
	LIT4174278		Repair Parts List		Appelez-nous	-
	LIT3150143		Chart, Quick Ref.		Appelez-nous	-
	LIT4313007		Cookbook Microwave		Appelez-nous	-
	LIT4313011		Label, Auto Cook Guide		Appelez-nous	-
	LIT4313012		Label, Defrost Guide		Appelez-nous	-
	LIT3150693		Cookbook T/c Oven		Appelez-nous	-
	LIT3180511		Use & Care Guide (microwave)		Appelez-nous	-
	LIT3184437		Use & Care Guide (oven)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
