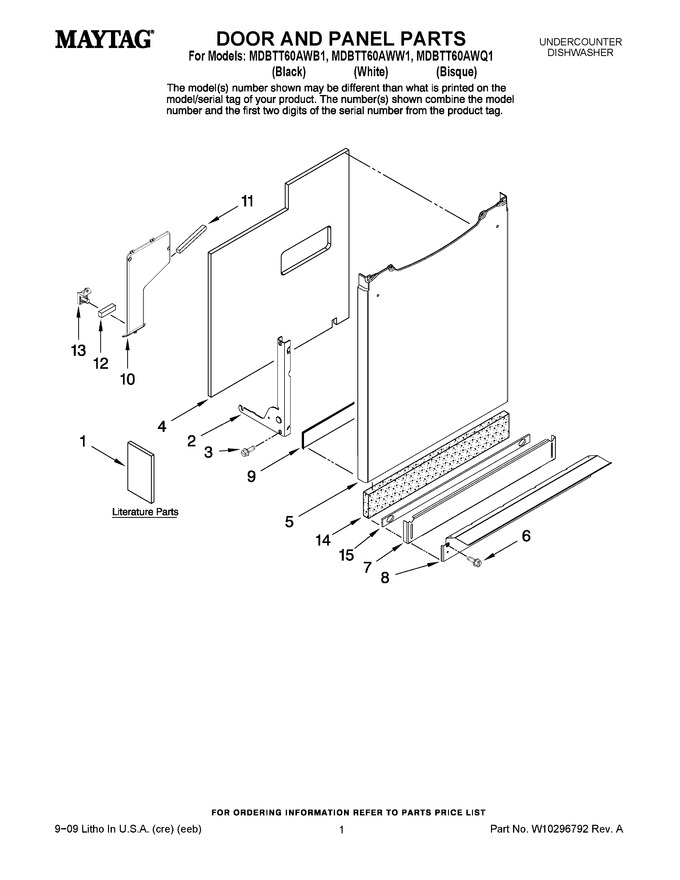

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10158012		Instructions, Installation		Appelez-nous	-
1	W10208026		Energy Guide		Appelez-nous	-
1	W10157789		Guide, Use & Care (english/french)		Appelez-nous	-
1	W10157790		Guide, Use & Care (spanish)		Appelez-nous	-
2	W10202226		Bracket, Hinge (left)		Appelez-nous	-
2	WPW10118637		Bracket, Hinge (right)   (Replaces: W10202227)				$ 233.73
3	99001075		Screw				$ 5.81
4	Y99002587		Pad, Foam		Appelez-nous	-
5	99002769		Panel, Front (stainless)		Appelez-nous	-
5	99002770		Panel, Front (white)		Appelez-nous	-
5	99002768		Panel, Front (black)		Appelez-nous	-
6	99001194		Screw (white)				$ 6.18
6	WP6-912366		Screw (black)   (Replaces: 912366)				$ 7.29
7	99002766		Panel, Toe (white)		Appelez-nous	-
7	99002765		Panel, Toe (black)		Appelez-nous	-
8	99002593		Support, Front (white)		Appelez-nous	-
8	99002591		Support, Front (black)		Appelez-nous	-
9	W10117748		Insulation, Door				$ 24.37
10	W10185633		Liner, Door Secondary				$ 8.74
11	99003481		Foam Strip(long)				$ 8.34
12	99003482		Foam Strip(short)				$ 7.75
13	99003541		Bracket, Secondary Door Liner		Appelez-nous	-
14	WP6-920587		Insulation, Toe   (Replaces: 99002414)				$ 6.35
15	99002698		Damper, Toe Panel (white)				$ 18.96
15	99002694		Damper, Toe Panel (black)				$ 20.14
