SELECT A DIAGRAM
01 - Cooktop
02 - Control Panel
03 - Door And Drawer
04 - Oven Chassis
05 - Oven
06 - Rear Chassis, Lit/optional
SELECT A DIAGRAM
New Model Search:

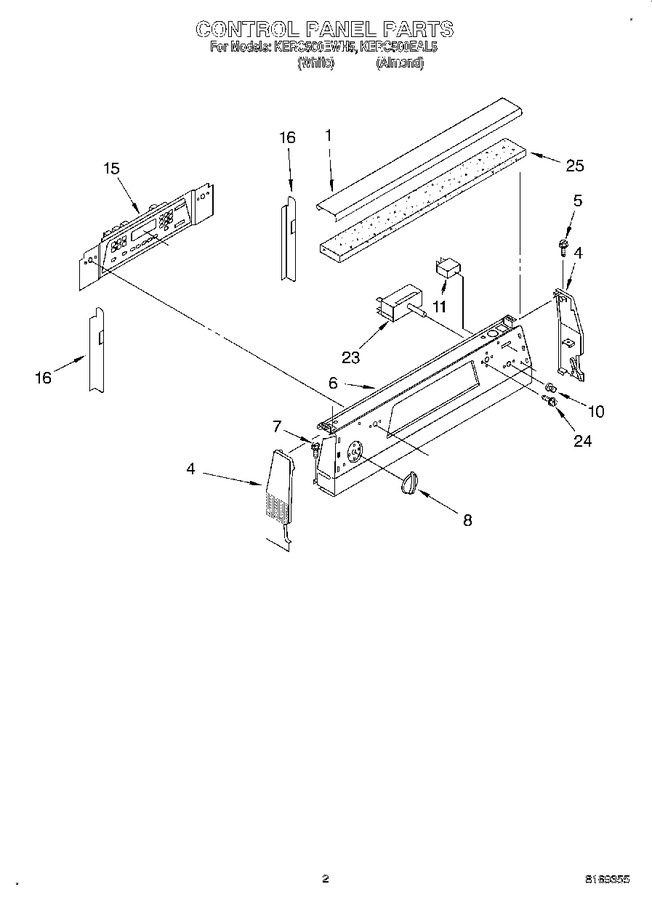

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9752335 | Lamp Cover (almond) |
|
- | |||||
| 1 | 3190562 | Lamp Cover (white) |
|
- | |||||
| 4 | 9750366FT | End Cap (left Hand) (almond) |
|
- | |||||
| 4 | 9750367FT | End Cap (right Hand) (almond) |
|
- | |||||
| 4 | 9750367FW | End Cap (right Hand) (white) |
|
- | |||||
| 4 | 9750366FW | End Cap (left Hand) (white) |
|
- | |||||
| 5 | 9780265 | Screw (2) 10 X 3/8 |
|
- | |||||
| 6 | 9752320PT | Panel, Control (almond) |
|
- | |||||
| 6 | 9752320PW | Panel, Control (white) |
|
- | |||||
| 7 | 9780852 | Screw, (2) 8 X 3/8 |
|
- | |||||
| 8 | 9750372FT | Knobs, Control (4) (almond) |
|
- | |||||
| 8 | WP9750372FW | Knobs, Control (4) (white) (Replaces: 9750372FW) |
|
$ 17.99 | |||||
| 10 | WP9750343 | Indicator Lens (Replaces: 9752589) |
|
Immediately | $ 5.14 | ||||
| 11 | 9753422 | Light Module (2) |
|
- | |||||
| 15 | 9752278CT | Oven Control Assembly (almond) |
|
- | |||||
| 15 | 9752278CP | Oven Control Assembly (white) (Replaces: 9752278CW) |
|
- | |||||
| 16 | 9780655 | Brace, Control Pnl |
|
- | |||||
| 23 | 8203538 | Infinite Switch (dual - Lf) (Replaces: 9753499) |
|
Immediately | $ 110.91 | ||||
| 23 | WP9750641 | Infinite Switch (2200w - Rr) (Replaces: 9750641) |
|
Immediately | $ 92.72 | ||||
| 23 | WP9750638 | Infinite Switch (1500w - Lr) (Replaces: 9750638) |
|
Immediately | $ 102.50 | ||||
| 23 | WP9750639 | Infinite Switch (1800w - Rf) (Replaces: 9750639) |
|
Immediately | $ 137.39 | ||||
| 24 | WP3400882 | Screw (8) (Replaces: 3400816) |
|
Immediately | $ 6.47 | ||||
| 25 | 9752639 | Insulation, Control |
|
- |
