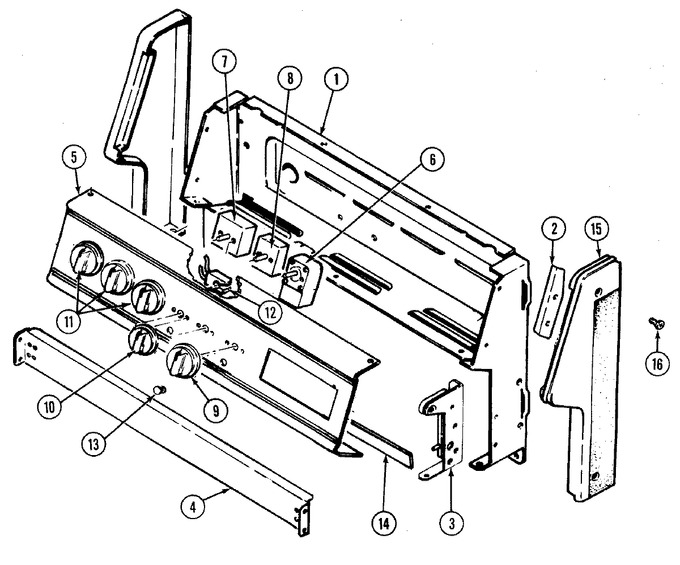

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4001F091-51 | Housing, Control Panel | 01 |
|
- | ||||
| 2 | W11233072 | Screw, Housing (Replaces: 7118P015-60) | 01 |
|
Immediately | $ 12.62 | |||
| 2 | 3807F435-45 | Support, Control Pnl (rt) | 01 |
|
- | ||||
| 2 | 3807F436-45 | Support, Control Pnl (lt) | 01 |
|
- | ||||
| 3 | 3418A087-34 | Hinge, Main Top (rt) | 01 |
|
- | ||||
| 3 | 3418A088-34 | Hinge, Main Top (lt) | 01 |
|
- | ||||
| 4 | 3802F087-51 | Brace, Lwr Bkgd | 01 |
|
- | ||||
| 5 | 2601F406-71 | Panel, Control (wht) | 01 |
|
- | ||||
| 5 | WP74004005 | Screw (Replaces: 7118P013-60) | 01 |
|
$ 6.95 | ||||
| 6 | 7404P081-60 | Thermostat | 01 |
|
- | ||||
| 7 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 01 |
|
Immediately | $ 6.26 | |||
| 7 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 01 |
|
Immediately | $ 35.10 | |||
| 7 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 01 |
|
Immediately | $ 57.78 | |||
| 8 | WP7403P255-60 | Switch, Selector (Replaces: 7403P255-60) | 01 |
|
$ 131.41 | ||||
| 9 | 7735P041-60 | Knob, Thermostat (wht) | 01 |
|
- | ||||
| 10 | 7739P048-60 | Knob, Selector (wht) | 01 |
|
- | ||||
| 11 | 7737P041-60 | Knob, Infinite Switch (wht) | 01 |
|
$ 14.27 | ||||
| 12 | 7407P081-60 | Light, Indicator | 01 |
|
- | ||||
| 12 | W10852510 | Light, Indicator (Replaces: 7407P102-60) | 16 |
|
$ 106.11 | ||||
| 13 | W11690131 | Lens, Indicator Light (Replaces: 7730P008-60) | 01 |
|
$ 6.73 | ||||
| 13 | W11690131 | Lens, Indicator Light (Replaces: 7730P012-60) | 16 |
|
$ 6.73 | ||||
| 14 | 3604F201-80 | Shield, Sight | 01 |
|
- | ||||
| 15 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 01 |
|
$ 15.94 | ||||
| 15 | 7726P051-60 | End Cap (rt-blk) | 01 |
|
- | ||||
| 15 | 7726P052-60 | End Cap (lt-blk) | 01 |
|
- | ||||
| 16 | 5170D119-60 | Harness, Control Panel | 01 |
|
- | ||||
| 16 | 5175D049-60 | Harness, Panel To Top | 01 |
|
- | ||||
| 16 | 5125A316-60 | Harness, Loose Wire | 01 |
|
- | ||||
| 16 | 7101P317-60 | Screw | 01 |
|
- | ||||
| 17 | 8113P023-60 | Manual, Use & Care | 01 |
|
- | ||||
| 17 | 16000329 | Guide, Quick Ref. - Magic Chef | 01 |
|
- |
