SELECT A DIAGRAM

01 - Cooktop


02 - Control Panel


03 - Door And Drawer


04 - Oven Chassis


05 - Oven

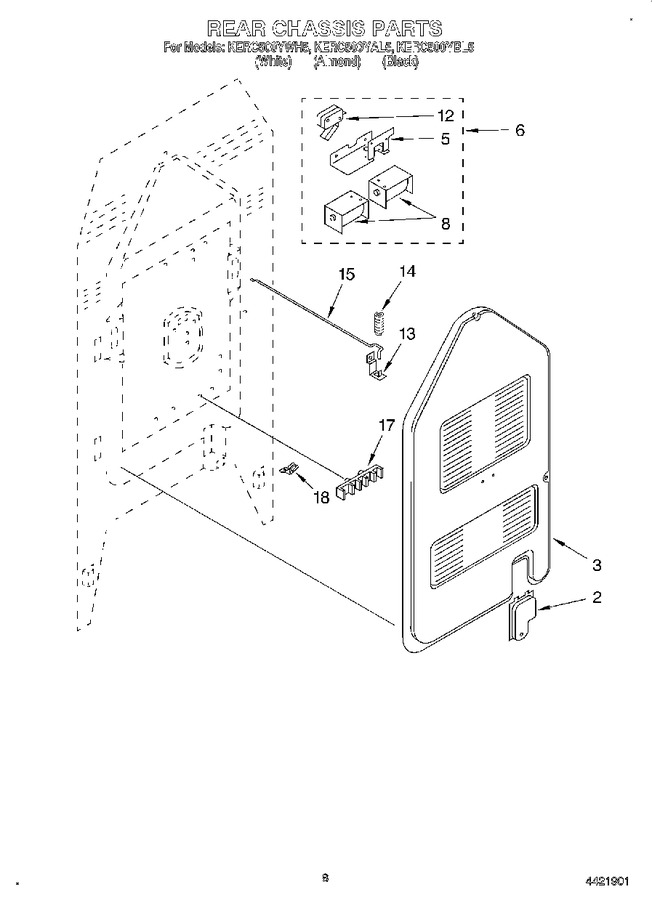

06 - Rear Chassis, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	9750490		Cover, Rear Access		Appelez-nous	-
2	9780265		Screw, (1) 10 X 3/8		Appelez-nous	-
3	4211813		Screw, (2) 10 X 3/8		Appelez-nous	-
3	9750245		Rear Panel		Appelez-nous	-
5	9780265		Screw (2) 10 X 3/8		Appelez-nous	-
5	9750526		Bracket, Lock		Appelez-nous	-
6	9750522		Oven Lock Assembly		Appelez-nous	-
6	9780265		Screw (2) 10 X 3/8		Appelez-nous	-
8	4211945		Screw, (2) 10-32 X 5/16		Appelez-nous	-
8	9750524		Solenoid		Appelez-nous	-
8	4211875		Washer		Appelez-nous	-
12	9750887		Screw, (2)		Appelez-nous	-
12	9750965		Switch, Interlock				$ 72.00
12	9750888		Nut (2)		Appelez-nous	-
13	9750834		Bracket, Spring		Appelez-nous	-
14	9750833		Spring, Door Lock		Appelez-nous	-
14	9780265		Screw, (1) 10 X 3/8		Appelez-nous	-
15	9750523		Rod, Lock		Appelez-nous	-
17	WP8203546		Terminal Block   (Replaces: 258076)			Immediately	$ 27.12
17	98884		Screw, (2) 10-16 X 1		Appelez-nous	-
17	WP112432		Nut, T-block (4)   (Replaces: 4319494)				$ 7.16
18	261888		New Avocado		Appelez-nous	-
18	261886		Coffee		Appelez-nous	-
18	261890		Harvest Gold		Appelez-nous	-
18	CERAMABRYTE		Cleaner, Glass   (Replaces: 814009)			Immediately	$ 9.95
18	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
18	285006		Paint, Spray 13 Oz. (black)			Immediately	$ 51.34
18	350942		Primer (white)   (Replaces: 206922)				$ 80.69
18	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
18	978883		Almond (uncut)		Appelez-nous	-
18	261891		Harvest Gold (uncut)		Appelez-nous	-
18	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
18	285368		Platinum (uncut)		Appelez-nous	-
18	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
18	8212471		Touch-up Self-clean(1/2 Pt)   (Replaces: 242756)			Immediately	$ 74.76
18	261582		Grease		Appelez-nous	-
18	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 49.92
18	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 49.92
18	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
18	285365		Toast		Appelez-nous	-
18	350956		Paint, Spray 13 Oz. (almond)				$ 46.30
18	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
18	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
18	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
18	WP681414		Screw, Grounding   (Replaces: 690989)			Immediately	$ 7.07
18	3169573		Strap, Ground		Appelez-nous	-
18	313660		Clip, (1)		Appelez-nous	-
18	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
18	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
18	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
18	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
18	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
18	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
18	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
18	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
18	242831		Wire (14 Ga. 200 C Red)				$ 342.23
18	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
18	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
18	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
18	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 54.25
18	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 98.33
18	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
18	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
18	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 105.40
18	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 44.36
18	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
	LIT9780944		Instruction Label (lamp Cover)		Appelez-nous	-
	9781296		Harness, Wire (w/o Fuses)		Appelez-nous	-
	LIT9780689		Quick Set Guide		Appelez-nous	-
	WPW10339879		Wire Tie   (Replaces: 20082084)				$ 7.11
	3400964		Harness Clip   (Replaces: 422667)				$ 76.28
	9781299		Pilot Lead		Appelez-nous	-
	9781298		Pilot Lead		Appelez-nous	-
	9781285		Jumper L2 4 Term.		Appelez-nous	-
	9750376		Harness, Wire (door)		Appelez-nous	-
	9781487		Harness, Wire (cooktop)		Appelez-nous	-
	9781214		Harness, Wire (lock Switch)		Appelez-nous	-
	9781288		Harness, Wire (oven)		Appelez-nous	-
	LIT4317161		Service Manual		Appelez-nous	-
	LIT9750520		Instructions, Installation		Appelez-nous	-
	LIT9780933		Use And Care Guide		Appelez-nous	-
	LIT9750877		Tech Sheet		Appelez-nous	-
	LIT9750876		Wiring Diagram		Appelez-nous	-
