SELECT A DIAGRAM

01 - Cooktop


02 - Control Panel


03 - Door And Drawer


04 - Oven Chassis


05 - Oven


06 - Rear Chassis, Lit/optional

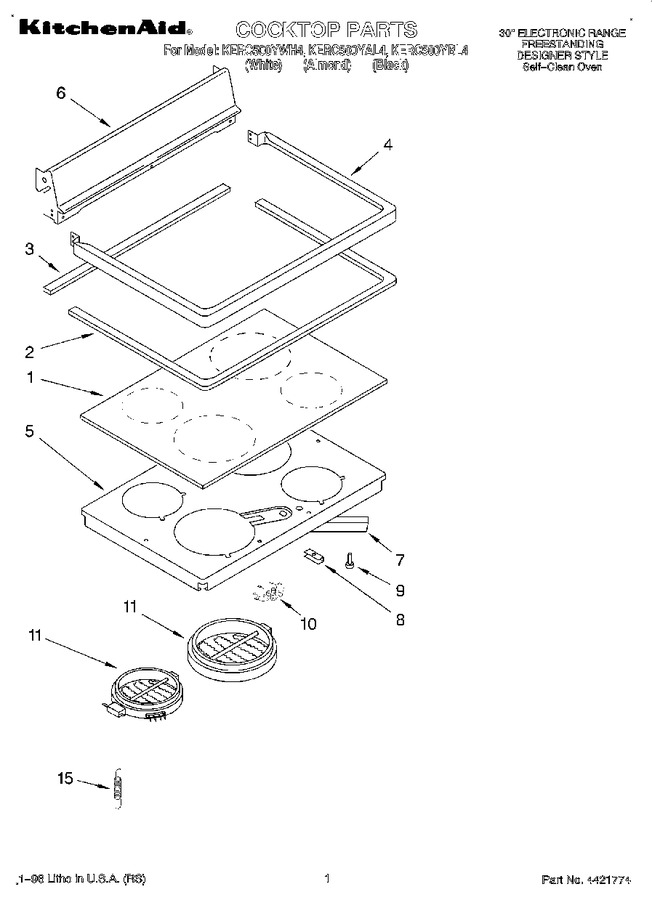

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9780853		Cooktop, Ceran (white Mdl.)		Appelez-nous	-
1	9781060		Cooktop, Ceran (almond/black Mdl.)		Appelez-nous	-
2	WP9780939		Gasket, Cooktop (front & Sides)   (Replaces: 9780939)			Immediately	$ 60.83
3	9780742		Rear Gasket		Appelez-nous	-
4	4211920		Frame, Cooktop (black)		Appelez-nous	-
4	3149333		Frame, Cooktop (screw, (4) 10ab X 1/2)				$ 5.33
4	4211918		Frame, Cooktop (white)		Appelez-nous	-
4	4211919		Frame, Cooktop (almond)		Appelez-nous	-
5	9750455		Support, Element		Appelez-nous	-
6	4211922		Back Splash (almond)		Appelez-nous	-
6	4211923		Back Splash (black)		Appelez-nous	-
6	3149333		Back Splash (screw (4) 10ab X 1/2``)				$ 5.33
6	4211921		Back Splash (white)		Appelez-nous	-
7	WP3387230		Screw (2) 10 X 3/4``   (Replaces: 9780273)			Immediately	$ 7.69
7	422404		Brace, Support		Appelez-nous	-
8	423248		Screw, (4) 10ph-b X 3/4		Appelez-nous	-
8	9750821		Support Clip (4)		Appelez-nous	-
9	238614		Bumper (4) (white)   (Replaces: 9750969)				$ 72.68
9	238614		Bumper (4) Black   (Replaces: 9780771)				$ 72.68
9	9781370		Bumper (4) (screw, Anchor)		Appelez-nous	-
10	9780931		Hot Light		Appelez-nous	-
11	9752182		Element, Surface (6`` L.r. 1400w)		Appelez-nous	-
11	9752183		Element, Surface (8`` R.r. 2100w)		Appelez-nous	-
11	9752184		Element, Surface (9`` L.f. 2400w)		Appelez-nous	-
11	9751529		Element, Surface (7`` R.f. 1700w)		Appelez-nous	-
15	9780679		Spring (12)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
