View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cooktop
02 - Control Panel
03 - Door And Drawer
04 - Oven Chassis
05 - Oven
06 - Rear Chassis, Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

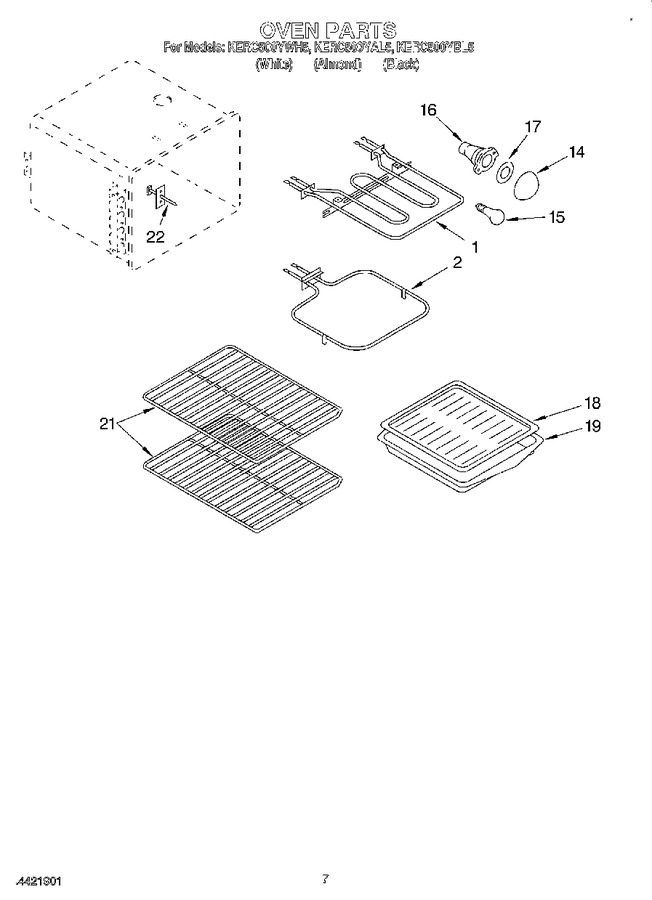

| 1 | UT513 | Element, Broil (Replaces: 9750967) |
|
Immediately | $ 56.69 | ||||
| 2 | UB413 | Element, Bake (Replaces: 9750213) |
|
Immediately | $ 47.24 | ||||
| 2 | 9781509 | Screw, Elements 8-32 X 3/8 |
|
- | |||||
| 14 | WP9781049 | Lens, Light (Replaces: 9781049) |
|
Immediately | $ 71.93 | ||||
| 15 | 40A15 | Bulb, Oven (Replaces: 4211947) |
|
Immediately | $ 1.98 | ||||
| 16 | W11594027 | Socket, Light (Replaces: 9781050) |
|
Immediately | $ 78.31 | ||||
| 17 | WP3184533 | Gasket, Len`s (Replaces: 3184533) |
|
Immediately | $ 7.73 | ||||
| 18 | 4396923 | Grill, Broiler (Replaces: 4421424) |
|
Immediately | $ 52.04 | ||||
| 19 | 4396923 | Pan, Broiler (Replaces: 4211944) |
|
Immediately | $ 52.04 | ||||
| 21 | 9750498 | Rack, Standard |
|
- | |||||
| 22 | 3148440 | Sensor |
|
- | |||||
| 22 | 9781509 | Screw |
|
- |
