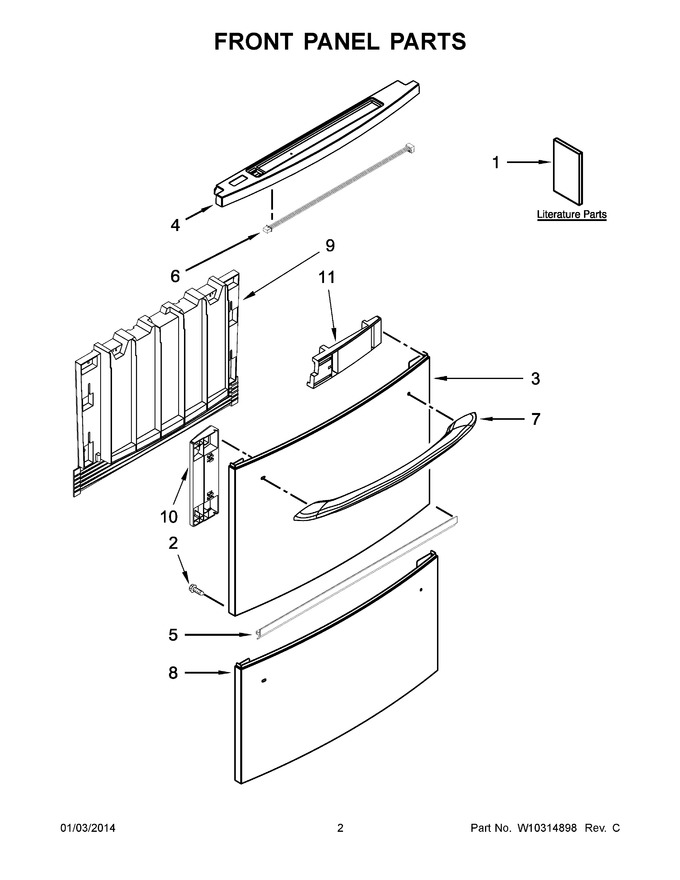

02 - Front Panel Parts


03 - Tub Parts


04 - Wash System Parts


05 - Upper And Lower Dishrack Parts


06 - Frame And Lid Parts


07 - Accessory Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10275772		Energy Guide		Appelez-nous	-
1	W10300218		Instructions, Installation		Appelez-nous	-
2	Y912620		Screw, Door				$ 5.48
3	W10185059		Panel,front(upper) (stainless)		Appelez-nous	-
4	W10128552		Control Panel (inc. Interface & Nameplate) (stainless)		Appelez-nous	-
5	99003716		Trim, Toe Kick (black)		Appelez-nous	-
6	99003706		Harness, Drawer				$ 182.02
7	W10185051		Handle, Door (stainless)		Appelez-nous	-
8	W10185063		Panel,front(lower) (stainless)		Appelez-nous	-
9	99003750		Intermediate Panel				$ 127.11
10	99003741		Fastener, Decorator Panel		Appelez-nous	-
11	99003743		Filler, Decorator Panel				$ 37.28
