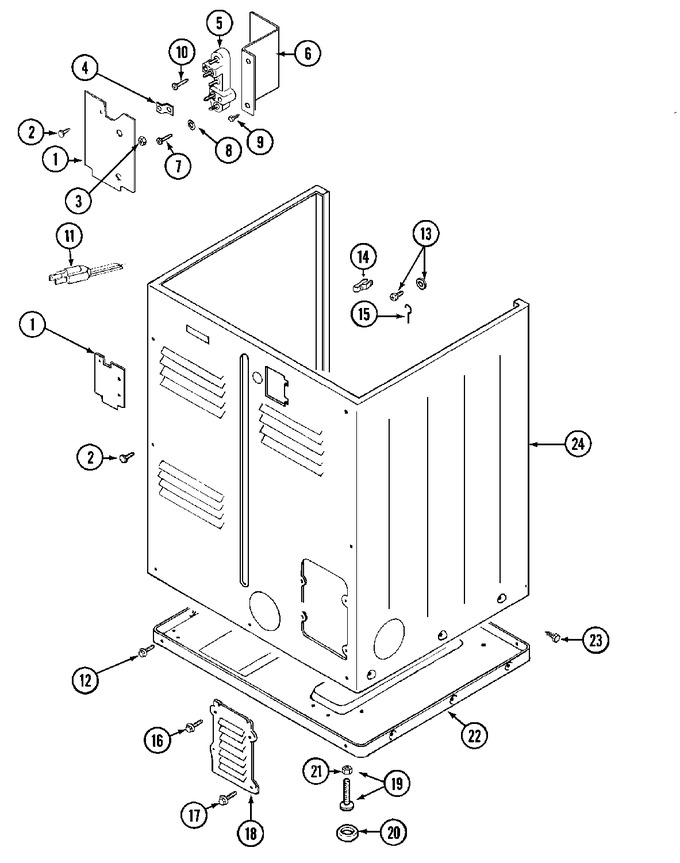

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	Y312905		Cover, Terminal	A0	Appelez-nous	-
002	Y313561		Screw, Terminal Cover	A0			$ 5.27
003	WP112432		Nut, Terminal Block   (Replaces: 311484)	A0			$ 7.16
004	Y312184		Strap, Ground	A0	Appelez-nous	-
005	400008		Block, Terminal	A0			$ 29.20
006	Y312904		Bracket, Terminal Block	A0	Appelez-nous	-
007	W11164114		Screw, Terminal Bracket   (Replaces: Y312209)	A0			$ 3.76
008	WP311093		Washer, Brass   (Replaces: 311093)	A0			$ 7.25
008	Y311270		Washer, Terminal Block	A0			$ 8.75
009	Y310632		Screw, Terminal Block	A0	Appelez-nous	-
010	NLA		Screw, Ground Strap	A0	Appelez-nous	-
011	305168		Cord, Power (canada)	A0	Appelez-nous	-
011	33001425		Locknut, Eared For Canadian	A0	Appelez-nous	-
012	Y310632		Screw, Cabinet	A0	Appelez-nous	-
012	Y313561		Screw, Cabinet	A0			$ 5.27
013	NLA		Screw & Washer Assembly	A0	Appelez-nous	-
014	301548		Ground Clamp & Screw	A0	Appelez-nous	-
015	204807		Ground Wire	A0	Appelez-nous	-
016	WP90767		Screw, Access Cover   (Replaces: Y313559)	A0		Immediately	$ 7.04
017	WP90767		Screw, Access Cover   (Replaces: 211294)	A0		Immediately	$ 7.04
018	Y312951		Cover, Access	A0	Appelez-nous	-
019	WP233550		Leg & Nut   (Replaces: Y305086)	A0			$ 7.16
020	Y314137		Foot, Rubber	A0			$ 14.08
021	WP62739		Nut, Leg   (Replaces: Y052740)	A0			$ 6.85
022	Y303361		Base Assembly	A0	Appelez-nous	-
023	213007		Screw, Cabinet Sides	A0			$ 10.99
024	NLA		Cabinet (wht)	A0	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
