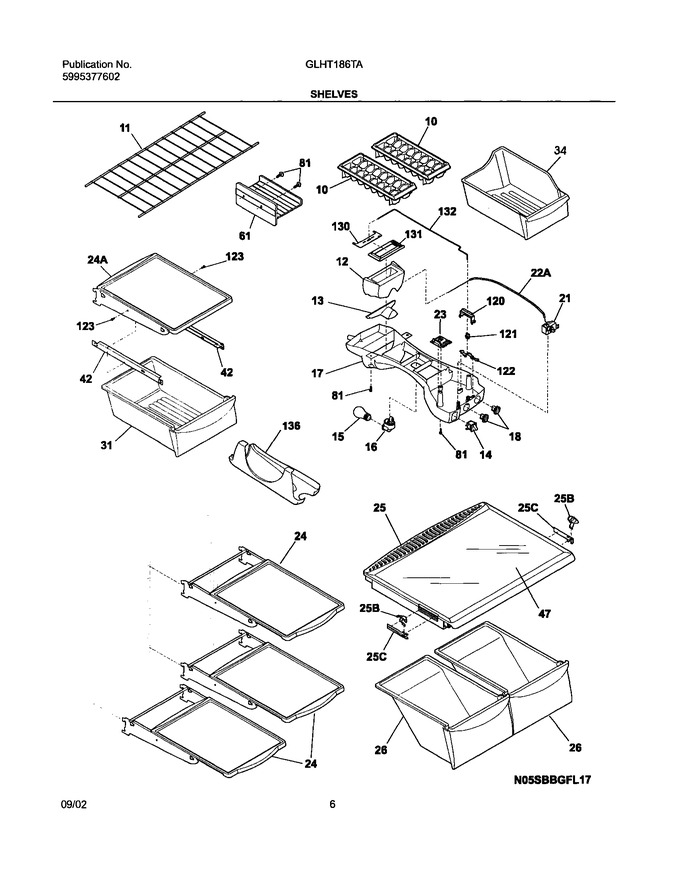

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	215667501		Tray,ice Cube ,plastic			Immediately	$ 6.07
11	240358002		Shelf-freezer,full Width		Appelez-nous	-
12	240417702		Diffuser-air,top		Appelez-nous	-
13	240362601		Diffuser-air,bottom			Immediately	$ 41.81
14	240505801		Switch-light/lamp				$ 66.63
15	316538904		Light Bulb/lamp,a-15 ,clear ,40 W ,120 V,miniature   (Replaces: 240436702)			Immediately	$ 20.48
16	241559801		Socket-light/lamp   (Replaces: 241500701)				$ 72.68
17	240342301		Control Box		Appelez-nous	-
18	240360801		Knob-temp Control				$ 43.95
24	241616607		Shelf-``spill-safe``,cantilever ,sliding   (Replaces: 240350111)				$ 146.81
25	240364787		Cover-crisper Pan   (Replaces: 240364714)			Immediately	$ 120.98
26	240337103		Pan-crisper,clear ,(2) ,no Graphics			Immediately	$ 148.35
31	240530811		Pan-meat,w/o Graphics ,clear   (Replaces: 240530803)			Immediately	$ 135.77
34	240385201		Container,ice Bin				$ 97.83
42	240356501		Track,meat Pan Hanger ,rh			Immediately	$ 56.70
42	240365401		Track,meat Pan Hanger ,lh			Immediately	$ 51.26
47	240350608		Insert-pan Cover,glass   (Replaces: 240350650)			Immediately	$ 45.50
61	215781501		Shelf,ice Tray Mount ,wire				$ 136.19
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
120	240366401		Guide-follower,cam Follower		Appelez-nous	-
121	240366602		Cam Follower				$ 26.04
122	240366502		Cam-damper				$ 10.82
123	215005101		Screw,hanger/rlr Mtg ,8-10 X 0.438   (Replaces: 215005100)				$ 14.89
130	240366101		Damper-control Box				$ 41.92
131	240366201		Retainer-damper,damper		Appelez-nous	-
132	240366301		Control Rod,damper		Appelez-nous	-
136	240424501		Dispenser-can,white		Appelez-nous	-
22A	240468202		Tube,sensor Sleeve ,31 Inch ,plastic ,white   (Replaces: 240468201)				$ 9.10
24A	241616607		Shelf-``spill-safe``,cantilever ,half Width,fixed   (Replaces: 240355213)				$ 146.81
25B	5304492617		Control-humidity   (Replaces: 240361201)			Immediately	$ 8.69
25C	5304492617		Damper,humidity Cont.   (Replaces: 240361301)			Immediately	$ 8.69
F130	218249806		Seal,insulation ,foam ,damper				$ 5.40
F21	241537103		Control-temperature   (Replaces: 5304421256)			Immediately	$ 72.31
F23	240375801		Control-defrost,adaptive Timer ,pc Board		Appelez-nous	-
NI	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
NI	240375501		Wiring Harness,control Box		Appelez-nous	-
NI	240466001		Seal-air Diffuser				$ 30.81
NI	240465035		Label,energy Guide		Appelez-nous	-
