01 - Cooktop

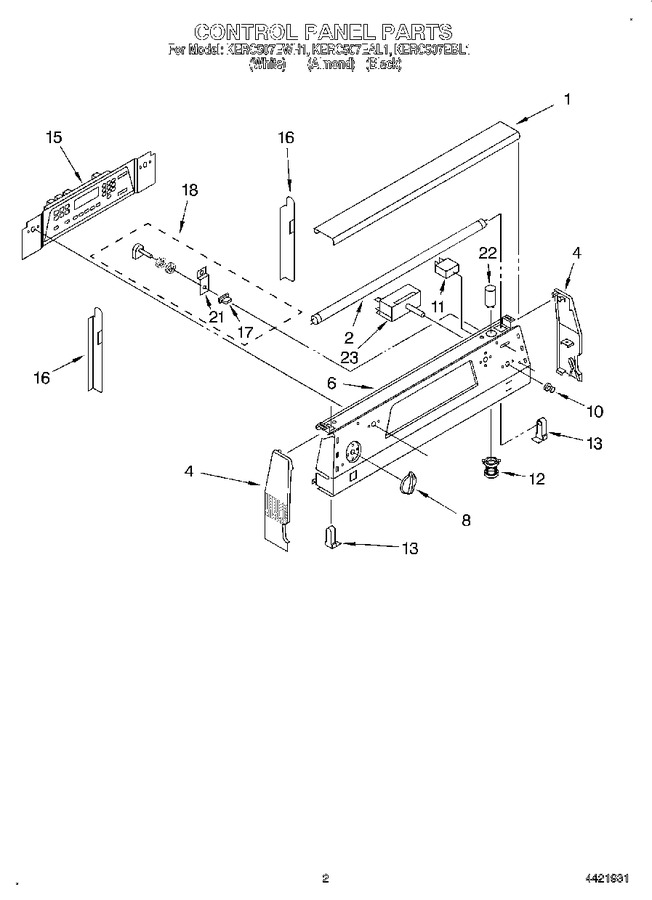

02 - Control Panel


03 - Door And Drawer


04 - Oven Chassis


05 - Oven


06 - Rear Chassis, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9752336		Lamp Cover (almond)		Appelez-nous	-
1	9780734		Lamp Cover (black)		Appelez-nous	-
1	9751795		Lamp Cover (white)		Appelez-nous	-
2	WP95292		Light, Fluorescent   (Replaces: 422581)			Immediately	$ 121.45
4	9750367FT		End Cap (right Hand) (almond)		Appelez-nous	-
4	9750367FW		End Cap (right Hand) (white)		Appelez-nous	-
4	9780265		(end Cap Left Hand) (screw (2) 10 X 3/8)		Appelez-nous	-
4	4211938		End Cap (left Hand) (black)		Appelez-nous	-
4	9750366FT		End Cap (left Hand) (almond)		Appelez-nous	-
4	9750366FW		End Cap (left Hand) (white)		Appelez-nous	-
4	4211935		End Cap (right Hand) (black)		Appelez-nous	-
6	9752316PB		Panel, Control (black)		Appelez-nous	-
6	9752316PW		Panel, Control (white)		Appelez-nous	-
6	9780852		Panel, Control (screw, (2) 8 X 3/8)		Appelez-nous	-
6	9752316PT		Panel, Control (almond)		Appelez-nous	-
8	WP9750372FF		Knobs, Control (4) (black)   (Replaces: 9750372FF)			Immediately	$ 18.86
8	WP9750372FW		Knobs, Control (4) (white)   (Replaces: 4211909)				$ 17.99
8	4211913		Knobs, Control (4) (almond)				$ 19.39
10	WP9750343		Indicator Lens   (Replaces: 9750343)			Immediately	$ 5.14
11	9750964		Light Module (4)		Appelez-nous	-
12	9750866		Starter, Holder		Appelez-nous	-
13	9750273		Receptacle, Lamp		Appelez-nous	-
15	9752277CP		Oven Control Assembly (almond)   (Replaces: 9752277CT)		Appelez-nous	-
15	9752277CP		Oven Control Assembly (black)   (Replaces: 9752277CB)		Appelez-nous	-
15	9752277CP		Oven Control Assembly (white)   (Replaces: 9752277CW)		Appelez-nous	-
16	9780655		Brace, Control Pnl		Appelez-nous	-
17	4421423		Button, Light (white)		Appelez-nous	-
17	4212111		Button, Light (black)		Appelez-nous	-
17	4212113		Button, Light (almond)		Appelez-nous	-
18	9751110		Switch, Light		Appelez-nous	-
21	9750721		Bracket, Switch		Appelez-nous	-
22	9781118		Starter, Light		Appelez-nous	-
23	WP3400882		Switch, Infinite (screw (8) 8-32 X 3/16)   (Replaces: 3400816)			Immediately	$ 6.47
23	WP9750638		Switch, Infinite (1400w - Lr)   (Replaces: 9750638)			Immediately	$ 102.50
23	WP9750639		Switch, Infinite (1700w - Rf)   (Replaces: 9750639)			Immediately	$ 137.39
23	WP9750641		Switch, Infinite (2400w - Rr)   (Replaces: 9750641)			Immediately	$ 92.72
23	8203538		Switch, Infinite (dual - Lf)   (Replaces: 9752315)			Immediately	$ 110.91
