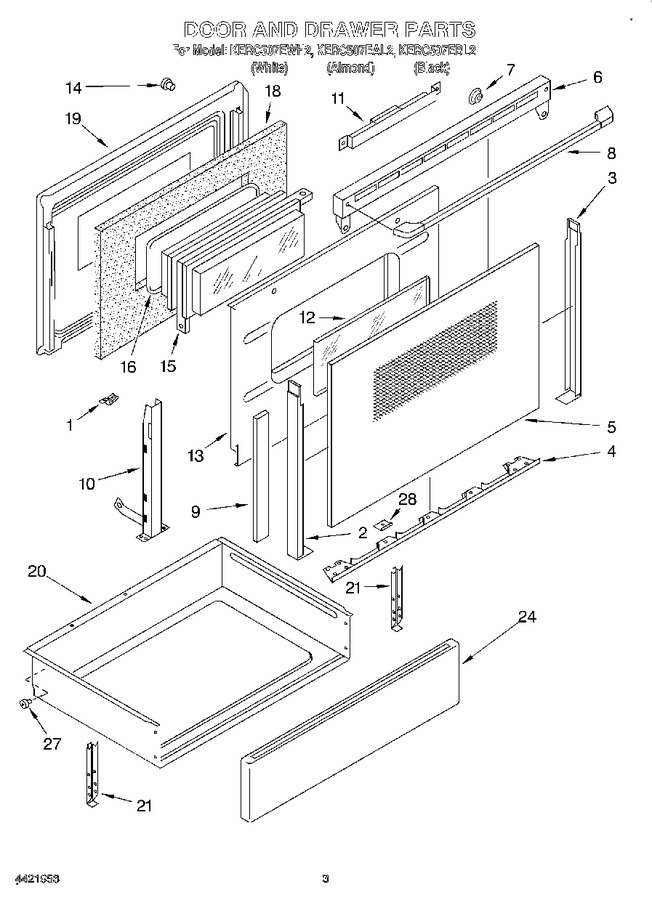

01 - Cooktop
02 - Control Panel
03 - Door And Drawer
04 - Oven Chassis
05 - Oven
06 - Rear Chassis, Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9750676 | Retainer, Glass |
|
- | |||||
| 2 | 4211899 | Trim, Door-left (black) |
|
- | |||||
| 2 | 9750631PT | Trim, Door-left (almond) |
|
- | |||||
| 2 | 4212028 | Trim, Door-left (white) |
|
- | |||||
| 3 | 4212029 | Trim, Door-right (white) |
|
- | |||||
| 3 | 9750632PT | Trim, Door-right (almond) |
|
- | |||||
| 3 | 4211900 | Trim, Door-right (black) |
|
- | |||||
| 4 | 9780265 | Trim, Door Bottom (screw, 10 X 3/8) |
|
- | |||||
| 4 | 9781209PB | Trim, Door Bottom (black) |
|
- | |||||
| 4 | 9781209PT | Trim, Door Bottom (almond) |
|
- | |||||
| 4 | 9781209PW | Trim, Door Bottom (white) |
|
- | |||||
| 5 | 9781244 | Glass, Door (white) |
|
- | |||||
| 5 | 9781245 | Glass, Door (almond) |
|
- | |||||
| 5 | 9781243 | Glass, Door (black) |
|
- | |||||
| 6 | 9751242GB | Vent, Door (black) |
|
- | |||||
| 6 | 9781490 | Vent, Door (seal, Door Vent Side) |
|
- | |||||
| 6 | 9781450 | Vent, Door (gasket, Vent) |
|
- | |||||
| 6 | WPW10001180 | Vent, Door (screw (2)) (Replaces: 9781072) |
|
$ 7.23 | |||||
| 6 | 9751242GT | Vent, Door (almond) |
|
- | |||||
| 6 | 9751242GW | Vent, Door (white) |
|
- | |||||
| 7 | 9781453 | Spacer, Door Vent |
|
- | |||||
| 8 | 4212234 | Handle, Door (white Mdl.) |
|
- | |||||
| 8 | 4212235 | Handle, Door (almond) |
|
- | |||||
| 8 | 4212058 | Handle, Door (black) |
|
- | |||||
| 8 | WPW10001180 | Handle, Door (screw (4) 10 X 1/2 (2)) (Replaces: 9781072) |
|
$ 7.23 | |||||
| 9 | 9781449 | Gasket, Door Glass |
|
- | |||||
| 10 | 9780265 | Screw (4) 10 X 3/8 |
|
- | |||||
| 10 | WP9782033 | Hinge, Door R Or L (Replaces: 9750234) |
|
Immediately | $ 208.67 | ||||
| 11 | 9750693 | Channel, Heat |
|
- | |||||
| 11 | 9780265 | Screw (2) 10 X 3/8 |
|
- | |||||
| 12 | 9750634 | Baffle, Glass |
|
$ 61.41 | |||||
| 13 | 9750233 | Shield, Door |
|
- | |||||
| 14 | 238614 | Bumper, Rubber (Replaces: 9780771) |
|
$ 72.68 | |||||
| 15 | 9751245 | Window Pack |
|
- | |||||
| 16 | 9751135 | Seal, Window |
|
- | |||||
| 18 | WPW10208653 | Insulation (Replaces: 9750231) |
|
Immediately | $ 49.92 | ||||
| 19 | 9781197GM | Liner, Door |
|
- | |||||
| 20 | 9780583 | Drawer & Roller |
|
- | |||||
| 21 | 9750169 | Bracket, Drawer |
|
- | |||||
| 21 | 9780272 | Screw (4) 10 X 1/2 |
|
- | |||||
| 24 | WP90296 | Front, Drawer (clip) (Replaces: 90296) |
|
$ 7.07 | |||||
| 24 | 4211992 | Front, Drawer (white) |
|
- | |||||
| 24 | 4211993 | Front, Drawer (almond) |
|
- | |||||
| 24 | 4212056 | Front, Drawer (black) |
|
- | |||||
| 27 | 814229 | Roller, Support (2) (Replaces: 423713) |
|
Immediately | $ 51.23 | ||||
| 28 | 9781206 | Retainer, Glass |
|
- |
