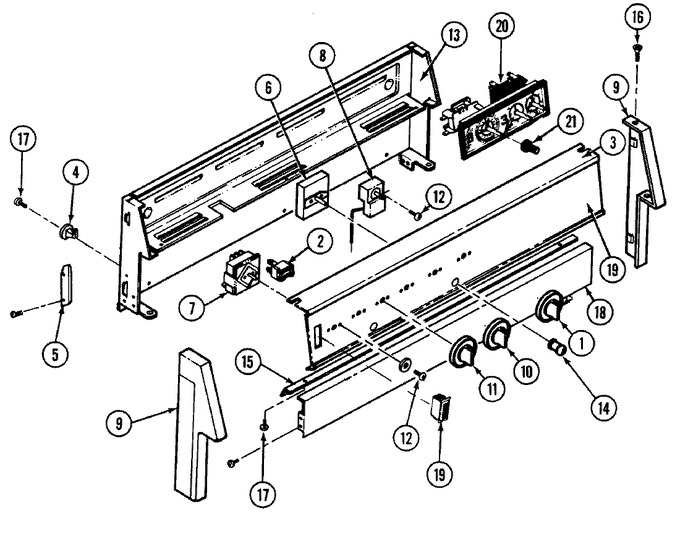

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7735P031-60		Knob, Thermostat	01	Appelez-nous	-
2	7407P081-60		Light, Indicator	01	Appelez-nous	-
3	2601F402-09		Panel, Control	01	Appelez-nous	-
4	8010P069-60		Spacer, Hinge (main Top)	01			$ 8.57
5	3807F436-45		Support, Control Pnl (lt)	01	Appelez-nous	-
5	3807F435-45		Support, Control Pnl (rt)	01	Appelez-nous	-
6	7403P254-60		Switch	01	Appelez-nous	-
7	WP7403P238-60		Switch, Infinite (sml Element)   (Replaces: 7403P238-60)	01		Immediately	$ 57.78
7	WP7403P239-60		Switch, Infinite (lrg Element)   (Replaces: 7403P239-60)	01		Immediately	$ 35.10
8	7404P081-60		Thermostat	01	Appelez-nous	-
9	7101P032-60		Screw	01	Appelez-nous	-
9	7726P069-60		End Cap (rt-blk)	01	Appelez-nous	-
9	7726P070-60		Trim, End Cap	01	Appelez-nous	-
10	7739P045-60		Knob, Selector	01	Appelez-nous	-
11	WP7737P030-60		Knob, Switch   (Replaces: 7737P030-60)	01			$ 17.81
12	WP7101P309-60		Screw   (Replaces: 7101P309-60)	01		Immediately	$ 6.26
13	4001F085-51		Housing	01	Appelez-nous	-
14	W11690131		Lens, Indicator Light   (Replaces: 7730P008-60)	01			$ 6.73
15	3604F201-80		Shield, Sight	01	Appelez-nous	-
16	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)	01			$ 15.94
17	W11233072		Screw, Housing   (Replaces: 7118P015-60)	01		Immediately	$ 12.62
18	2612F036-84		Panel, Backsplash (alm)	01	Appelez-nous	-
18	2612F036-81		Panel, Backsplash (wht)	01	Appelez-nous	-
19	7403P067-60		Switch, Rocker (blk)	01			$ 91.35
20	7601P186-60		Clock	01	Appelez-nous	-
21	7711P466-60		Knob, Clock	01			$ 14.72
21	5125A314-60		Wire, Loose	01	Appelez-nous	-
21	5170D117-60		Harness, Control Panel	01	Appelez-nous	-
