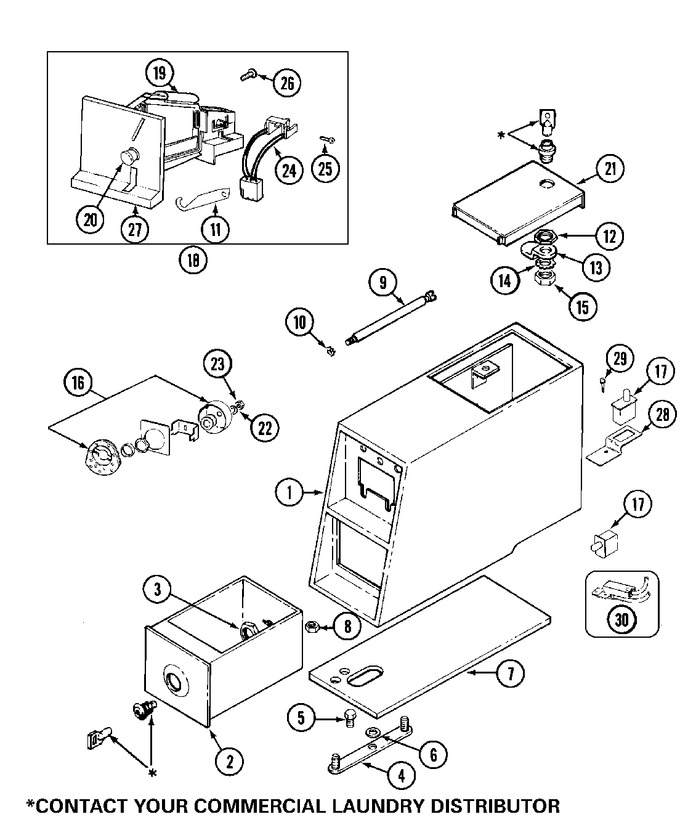

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | 22001407 | Case, Coin Meter (wht) | A0 |
|
- | ||||
| 001 | 22001408 | (alm) | A0 |
|
- | ||||
| 002 | 207912 | Box, Coin (wht) | A0 |
|
- | ||||
| 002 | 207912L | (alm) | A0 |
|
- | ||||
| 003 | W11395752 | Nut, Lock (Replaces: 212328) | A0 |
|
$ 11.74 | ||||
| 004 | NLA | Strap, Mounting | A0 |
|
- | ||||
| 005 | WP90767 | Screw, Mounting Strap (Replaces: 211294) | A0 |
|
Immediately | $ 7.04 | |||
| 006 | 910309 | Washer, Strap Screw | A0 |
|
- | ||||
| 007 | 214660 | Gasket, Meter Case | A0 |
|
- | ||||
| 008 | WP62739 | Nut, Case Mounting (Replaces: Y052740) | A0 |
|
$ 6.85 | ||||
| 009 | 213035 | Bolt, Locking | A0 |
|
$ 5.84 | ||||
| 010 | 910181 | Lockwasher, Locking Bolt | A0 |
|
- | ||||
| 011 | 216011 | Spring, Return Button | A0 |
|
- | ||||
| 012 | W11395752 | Nut, Cam Lock (Replaces: 212328) | A0 |
|
$ 11.74 | ||||
| 013 | W11165684 | Cam, Lock (Replaces: 213750) | A0 |
|
$ 8.20 | ||||
| 014 | WPW10133264 | Lockwasher, Lock Cam (Replaces: 22001354) | A0 |
|
$ 125.12 | ||||
| 015 | 22001355 | Nut, Lock Cam | A0 |
|
- | ||||
| 016 | NLA | Lock Cam Assembly | A0 |
|
- | ||||
| 017 | WPW10131838 | Switch, Sensor (Replaces: 33001250) | A0 |
|
$ 21.52 | ||||
| 018 | 207948 | Coin Drop Assembly | A0 |
|
- | ||||
| 019 | 207947 | Drop, Coin | A0 |
|
- | ||||
| 020 | 216200 | Button, Return | A0 |
|
- | ||||
| 021 | 204216 | Door, Access (wht) | A0 |
|
- | ||||
| 021 | 204216L | (alm) | A0 |
|
- | ||||
| 022 | WPW10133264 | Lockwasher, Lock Cam (Replaces: 22001354) | A0 |
|
$ 125.12 | ||||
| 023 | 216203 | Lockwasher, Double ``d`` | A0 |
|
- | ||||
| 023 | 22001355 | Nut, Lock Cam | A0 |
|
- | ||||
| 024 | 206799 | Optic Switch Assembly | A0 |
|
$ 113.64 | ||||
| 025 | WP3395530 | Screw, Switch Assembly (Replaces: 314665) | A0 |
|
$ 6.93 | ||||
| 026 | 216068 | Screw, Coin Drop | A0 |
|
- | ||||
| 027 | 216010 | Plate, Mounting | A0 |
|
- | ||||
| 028 | 22001404 | Bracket, Switch | A0 |
|
- | ||||
| 029 | WP90767 | Screw, Bracket (Replaces: 212276) | A0 |
|
Immediately | $ 7.04 | |||
| 030 | 208045 | Harness, Wire (sensor Sw) | A0 |
|
- |
