01 - Control Panel


02 - Cabinet (front)


03 - Door


04 - Cabinet (rear)


05 - Tumbler


06 - Heater


07 - Motor Drive


08 - Control Center

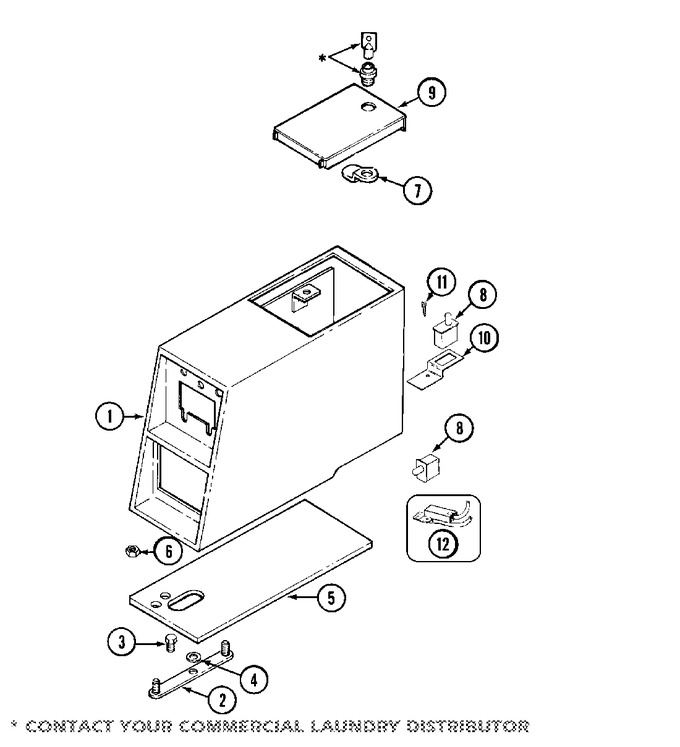

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	22001407		Case, Coin Slide (wht)	10	Appelez-nous	-
002	NLA		Strap, Mounting	10	Appelez-nous	-
003	WP90767		Screw, Mounting Strap   (Replaces: 211294)	10		Immediately	$ 7.04
004	910309		Washer, Strap Screw	10	Appelez-nous	-
005	214660		Gasket, Meter Case	10	Appelez-nous	-
006	WP62739		Nut, Case Mounting   (Replaces: Y052740)	10			$ 6.85
007	W11165684		Cam, Lock   (Replaces: 213750)	10			$ 8.20
008	WPW10131838		Switch, Sensor   (Replaces: 33001250)	10			$ 21.52
009	204216		Door, Access (wht)	10	Appelez-nous	-
010	22001404		Bracket, Switch	10	Appelez-nous	-
011	WP90767		Screw, Switch Bracket   (Replaces: 212276)	10		Immediately	$ 7.04
012	NLA		Harness, Wire (sensor Sw.)	10	Appelez-nous	-
