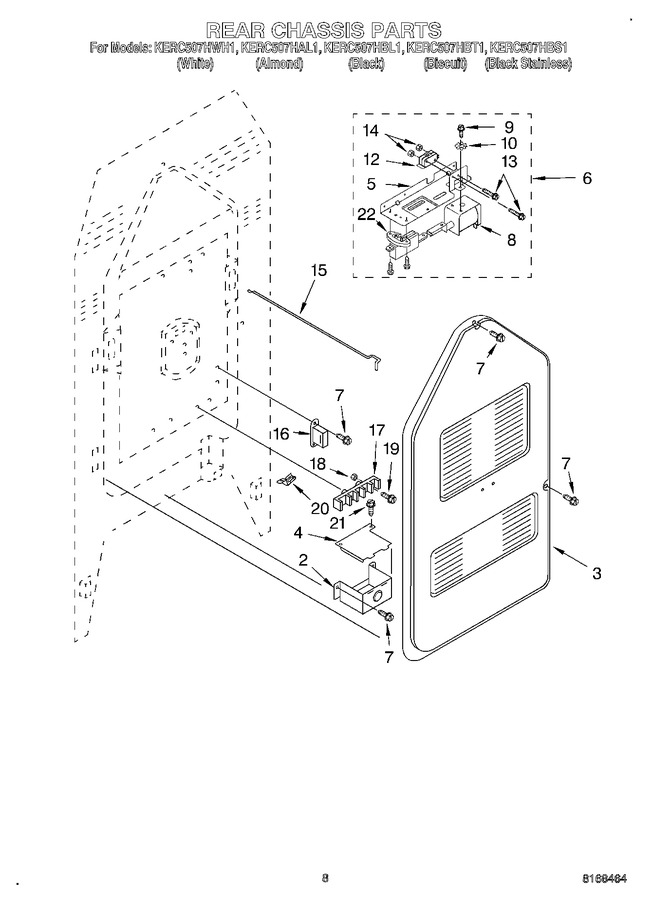

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	9752344		Box, Terminal		Appelez-nous	-
3	9750150		Panel, Rear		Appelez-nous	-
4	9752345		Cover, Terminal Box		Appelez-nous	-
5	9750526		Bracket, Lock		Appelez-nous	-
6	9752404		Oven Lock Assembly		Appelez-nous	-
7	9780265		Screw, 10-16 X 3/8		Appelez-nous	-
8	9752409		Solenoid		Appelez-nous	-
9	422222		Screw, 10-32 X .31		Appelez-nous	-
10	424238		Washer		Appelez-nous	-
12	9750965		Switch, Interlock				$ 72.00
13	9750887		Screw, 4-40 X 1		Appelez-nous	-
14	9750888		Nut (2)		Appelez-nous	-
15	9750523		Rod, Lock		Appelez-nous	-
16	3191044		Ballast, Lamp		Appelez-nous	-
17	WP8203546		Terminal Block   (Replaces: 258076)			Immediately	$ 27.12
18	WP112432		Nut, Terminal Block   (Replaces: 112432)				$ 7.16
19	98884		Screw, 10-16 X 1		Appelez-nous	-
20	3169573		Strap, Ground		Appelez-nous	-
21	9751871		Screw, 10-16 X 1		Appelez-nous	-
22	9752462		Single Position Device (not Serviced)		Appelez-nous	-
