SELECT A DIAGRAM

01 - Control Panel


02 - Control Center


03 - Cabinet-front


04 - Door


05 - Cabinet-rear


06 - Tumbler


07 - Heater


08 - Motor Drive

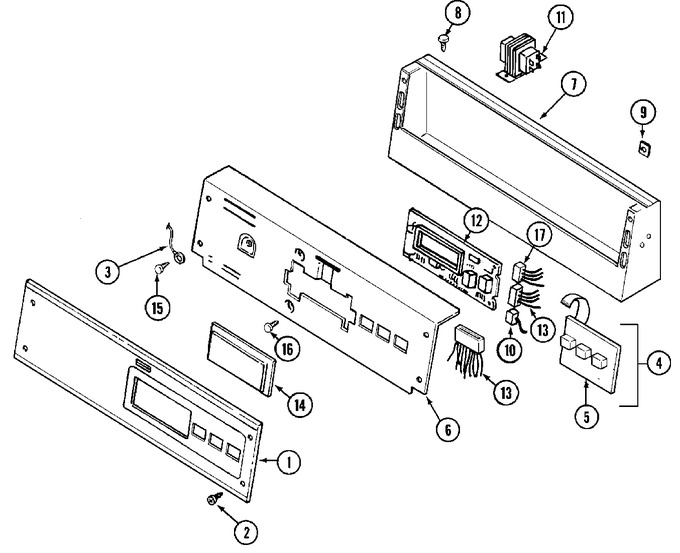

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	33001020		Panel, Control	A0	Appelez-nous	-
002	WPW10131119		Screw, Control Panel   (Replaces: 215506)	A0			$ 6.26
003	205810		Wire, Ground	A0	Appelez-nous	-
004	W10756178		Screw, Switch   (Replaces: 215527)	A0			$ 5.39
004	306694		Control Switch Assembly	A0			$ 73.51
005	WPW10424308		Pushbutton, Control Switch   (Replaces: 215517)	A0		Immediately	$ 18.38
006	NLA		Plate, Backup (wht)	A0	Appelez-nous	-
007	NLA		Console (wht)	A0	Appelez-nous	-
008	WP90767		Screw, Console   (Replaces: 212276)	A0		Immediately	$ 7.04
009	215003		Clip, Screw	A0	Appelez-nous	-
010	208045		Harness, Wire (sensor Sw`s.)	A0	Appelez-nous	-
010	22001361		Connector, Edgeboard	A0	Appelez-nous	-
011	WP90767		Screw   (Replaces: 211294)	A0		Immediately	$ 7.04
011	207766		Transformer	A0	Appelez-nous	-
012	33001249		Battery	A0	Appelez-nous	-
012	M0282005		Locknut, Control Board   (Replaces: 912077)	A0			$ 7.07
012	Y215513		Spacer, Control Board	A0	Appelez-nous	-
012	NLA		Support, Battery	A0	Appelez-nous	-
013	33001283		Wire Harness, Main	A0	Appelez-nous	-
013	33001428		Wire Harness, Main	A0	Appelez-nous	-
013	314531		Connector, Edgeboard	A0	Appelez-nous	-
014	33001208		Cover, Display	A0	Appelez-nous	-
015	WP489399		Screw, Ground Wire   (Replaces: 211252)	A0			$ 6.26
016	215526		Screw, Control Board	A0	Appelez-nous	-
017	206799		Optic Switch Assembly	A0			$ 113.64
017	NLA		Connector, Edgeboard----na	A0	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
