View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door/drawer
04 - Oven
05 - Top Assembly
New Model Search:

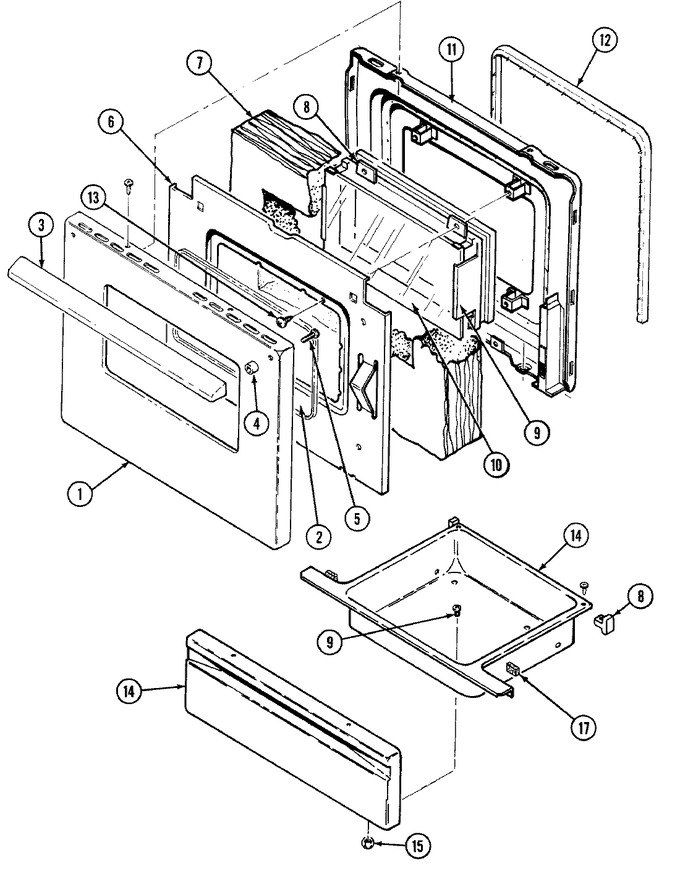

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2401F097-71 | Panel, Door (wht) | 01 |
|
- | ||||
| 2 | 7201P017-60 | Gasket, Window | 01 |
|
$ 52.69 | ||||
| 3 | 7701P030-60 | Handle, Door (chr) | 01 |
|
- | ||||
| 4 | 8010P084-60 | Spacer, Handle (blk) | 01 |
|
- | ||||
| 5 | WP3387230 | Screw, Clamp (Replaces: 7101P080-60) | 01 |
|
Immediately | $ 7.69 | |||
| 6 | 3601F232-45 | Baffle, Door | 01 |
|
- | ||||
| 7 | 7002P156-60 | Insulation, Door | 01 |
|
- | ||||
| 8 | 8004P026-60 | Support, Drawer (rear) | 01 |
|
$ 9.29 | ||||
| 9 | 7101P291-60 | Screw | 01 |
|
- | ||||
| 10 | 7907P015-60 | Window Asy. | 01 |
|
- | ||||
| 11 | 2402W203-19 | Lining, Door | 01 |
|
- | ||||
| 12 | WP7212P043-60 | Seal, Silicone (Replaces: 7212P034-60) | 01 |
|
Immediately | $ 56.83 | |||
| 13 | W11233072 | Screw (Replaces: 7101P290-60) | 01 |
|
Immediately | $ 12.62 | |||
| 14 | 2416F039-62 | Panel, Drawer (wht) | 01 |
|
- | ||||
| 15 | WPW10131078 | Nut, Lock (Replaces: 7103P085-60) | 01 |
|
$ 4.00 | ||||
| 16 | 3405F015-80 | Drawer, Storage | 01 |
|
- | ||||
| 17 | WP854334 | Spacer, Rubber (Replaces: 8010P086-60) | 01 |
|
$ 11.95 |
