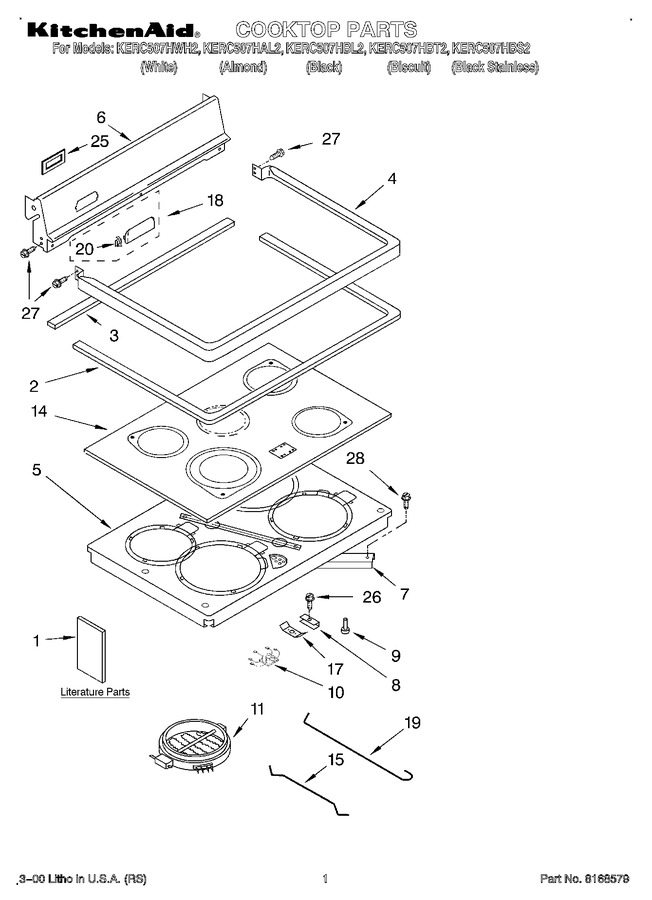

01 - Cooktop, Literature
02 - Control Panel
03 - Door And Drawer
04 - Oven Chassis
05 - Oven
06 - Rear Chassis
07 - Hidden Bake
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT9753843 | Literature Parts (use & Care Guide) |
|
- | |||||
| 1 | LIT4449066 | Cookbook T/c Ovens |
|
- | |||||
| 1 | LIT3191638 | Safer Cooking Tips |
|
- | |||||
| 1 | LIT9752387 | Literature Parts (installation Instructions) |
|
- | |||||
| 1 | LIT9753857 | Literature Parts (tech Sheet) |
|
- | |||||
| 1 | LIT9752776 | Literature Parts (template, Anti-tip) |
|
- | |||||
| 1 | LIT9752686 | Literature Parts (smart & Easy Guide) |
|
- | |||||
| 2 | WP9780939 | Gasket, Cooktop (front & Sides) (Replaces: 9780939) |
|
Immediately | $ 60.83 | ||||
| 3 | 9781614 | Rear Gasket |
|
$ 47.02 | |||||
| 4 | 9750456PC | Frame, Cooktop (biscuit) |
|
- | |||||
| 4 | 9750456PB | Frame, Cooktop (black) |
|
- | |||||
| 4 | 9750456PW | Frame, Cooktop (white) |
|
- | |||||
| 4 | 9750456PT | Frame, Cooktop (almond) |
|
- | |||||
| 5 | 9753674 | Support, Element |
|
- | |||||
| 6 | 9752337GW | Back Splash (white) |
|
- | |||||
| 6 | 9752337GB | Back Splash (black) |
|
- | |||||
| 6 | 9752337GC | Back Splash (biscuit) |
|
- | |||||
| 6 | 9752337GT | Back Splash (almond) |
|
- | |||||
| 7 | 9753675 | Brace, Support |
|
- | |||||
| 8 | 9753691 | Support Clips (4) |
|
- | |||||
| 9 | 238614 | Bumper (4) (Replaces: 9750969) |
|
$ 72.68 | |||||
| 10 | 9781935 | Hot Light |
|
- | |||||
| 11 | W10823698 | Element, Surface (1800w - Lr-rf) (Replaces: 8272566) |
|
Immediately | $ 175.61 | ||||
| 11 | W10823692 | Element, Surface (1000/2400w - Lf) (Replaces: 8272563) |
|
Immediately | $ 204.83 | ||||
| 11 | W10823699 | Element, Surface (1500w - Rr) (Replaces: 8272564) |
|
Immediately | $ 145.67 | ||||
| 11 | WP8523700 | Element, Surface (warm Zone) (Replaces: 9753998) |
|
Immediately | $ 159.08 | ||||
| 14 | 9753710CW | Cooktop, Ceran (white) |
|
- | |||||
| 14 | 9753710CT | Cooktop, Ceran (almond) |
|
- | |||||
| 14 | 9753710CB | Cooktop, Ceran (black) |
|
- | |||||
| 15 | 9781460 | Rod, Small Ceran Element |
|
- | |||||
| 17 | WP9781235 | Screw, Anchor (Replaces: 9781235) |
|
$ 10.76 | |||||
| 18 | 9753040CC | Cover, Vent (biscuit) |
|
- | |||||
| 18 | 9753040CB | Cover, Vent (black) |
|
- | |||||
| 18 | 9753040CT | Cover, Vent (almond) |
|
- | |||||
| 18 | 9753040CW | Cover, Vent (white) |
|
- | |||||
| 19 | 9781459 | Rod, Large Ceran Element |
|
- | |||||
| 20 | 3149190 | Clip, Mounting |
|
- | |||||
| 25 | 9750767 | Gasket |
|
- | |||||
| 26 | 423248 | Screw, 10-16 X 3/4 |
|
- | |||||
| 27 | 3149333 | Screw, 10-16 X 1/2 |
|
$ 5.33 | |||||
| 28 | 9753677 | Spring, Warm Zone |
|
- | |||||
| 28 | 9780272 | Screw, 10-16 X 1/2 |
|
- |
