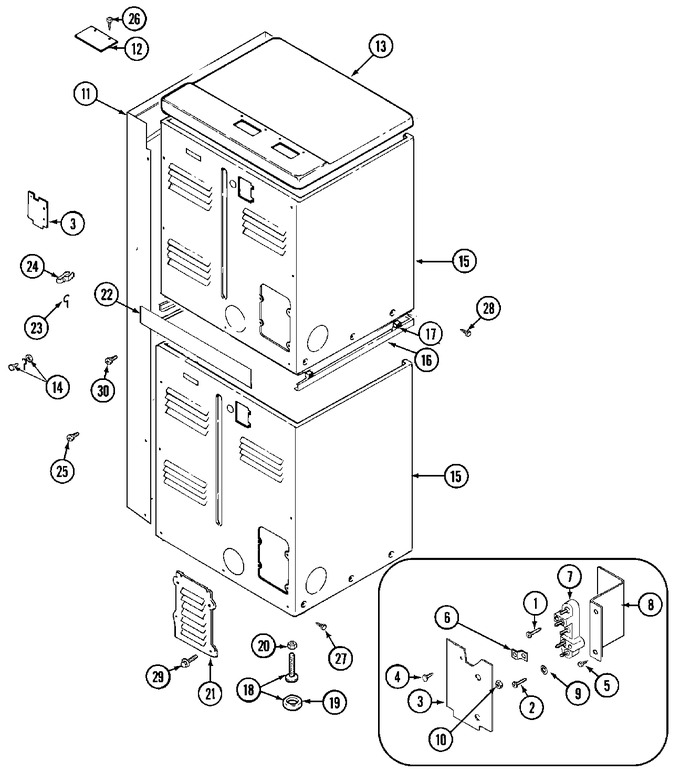

01 - Control Center Shroud
02 - Control Center
03 - Front View
04 - Door
05 - Rear View
06 - Tumbler
07 - Heater
08 - Motor Drive
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | NLA | - Not Used- | A0 |
|
- | ||||
| 002 | Y310632 | -not Used- | A0 |
|
- | ||||
| 003 | Y312905 | Cover, Terminal | A0 |
|
- | ||||
| 004 | Y313561 | Screw, Terminal Cover | A0 |
|
$ 5.27 | ||||
| 005 | W11164114 | Screw, Terminal Bracket (Replaces: Y312209) | A0 |
|
$ 3.76 | ||||
| 006 | Y312184 | -not Used- | A0 |
|
- | ||||
| 007 | 400008 | Block, Terminal | A0 |
|
$ 29.20 | ||||
| 008 | Y312904 | Bracket, Terminal Block | A0 |
|
- | ||||
| 009 | WP311093 | Washer, Brass (Replaces: 311093) | A0 |
|
$ 7.25 | ||||
| 009 | Y311270 | Washer, Terminal Block | A0 |
|
$ 8.75 | ||||
| 010 | WP112432 | Nut, Terminal Block (Replaces: 311484) | A0 |
|
$ 7.16 | ||||
| 011 | NLA | Shroud, Control (wht) | A0 |
|
- | ||||
| 012 | NLA | Plate, Top Cover | A0 |
|
- | ||||
| 013 | 33001165 | Top Cover Assembly (wht) | A0 |
|
- | ||||
| 013 | NLA | (alm) | A0 |
|
- | ||||
| 014 | NLA | Screw & Washer Assembly | A0 |
|
- | ||||
| 015 | NLA | Cabinet (upr-alm) | A0 |
|
- | ||||
| 015 | Y310632 | Screw, Cabinet | A0 |
|
- | ||||
| 016 | 33001302 | (wht) | A0 |
|
- | ||||
| 016 | NLA | Spacer Assembly (alm) | A0 |
|
- | ||||
| 017 | 310933 | Fastener, Spacer Assembly | A0 |
|
- | ||||
| 018 | 22003428 | Leg, Adjustable (w/nut)---s (Replaces: Y302699) | A0 |
|
Immediately | $ 14.41 | |||
| 019 | WP210684 | Foot, Rubber (Replaces: 210684) | A0 |
|
Immediately | $ 14.09 | |||
| 020 | WP210385 | Nut, Adjustable Leg (Replaces: 210385) | A0 |
|
$ 6.26 | ||||
| 021 | Y312951 | Cover, Access | A0 |
|
- | ||||
| 022 | NLA | Strip, Filler | A0 |
|
- | ||||
| 023 | 311155 | Ground Wire | A0 |
|
$ 8.77 | ||||
| 024 | 301548 | Clamp, Ground (w/screw) | A0 |
|
- | ||||
| 025 | NLA | Screw, Shroud | A0 |
|
- | ||||
| 026 | WP90767 | Screw, Top Cover Plate (Replaces: Y313559) | A0 |
|
Immediately | $ 7.04 | |||
| 027 | 213007 | Screw, Cabinet | A0 |
|
$ 10.99 | ||||
| 028 | NLA | Screw, Spacer Assembly | A0 |
|
- | ||||
| 028 | Y310632 | Screw, Spacer Assembly | A0 |
|
- | ||||
| 029 | WP90767 | Screw, Access Cover (Replaces: 211294) | A0 |
|
Immediately | $ 7.04 | |||
| 029 | WP90767 | Screw, Access Cover (Replaces: Y313559) | A0 |
|
Immediately | $ 7.04 | |||
| 030 | Y313561 | Screw, Filler Strip | A0 |
|
$ 5.27 | ||||
| 030 | Y310632 | Screw, Filler Strip | A0 |
|
- |
