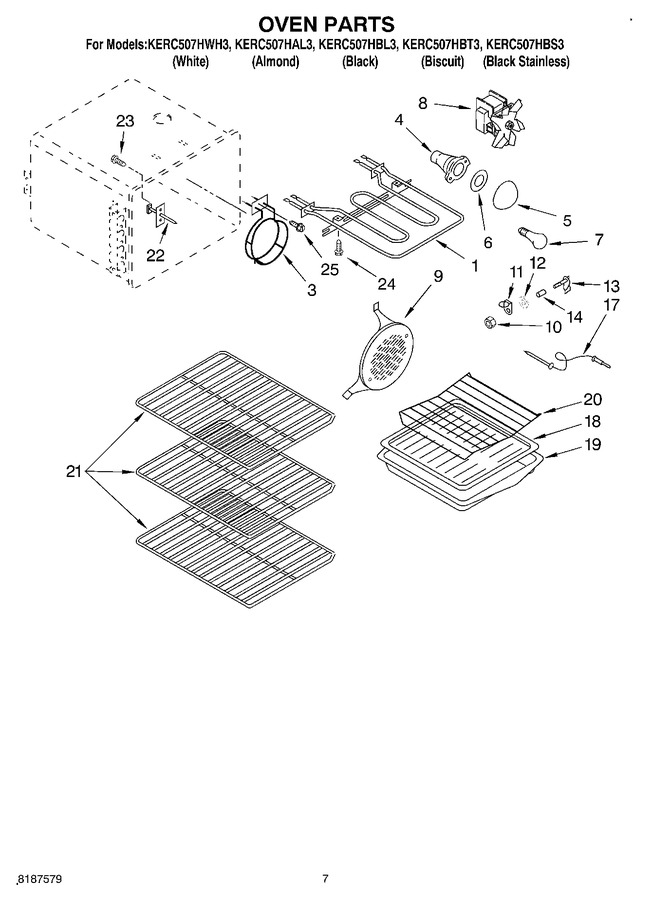

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | UT513 | Element, Broil (Replaces: 9750967) |
|
Immediately | $ 56.69 | ||||
| 3 | WPW10280189 | Element, Convection (Replaces: 9751447) |
|
$ 295.73 | |||||
| 4 | W11594027 | Socket, Light (Replaces: 9781050) |
|
Immediately | $ 78.31 | ||||
| 5 | WP9781049 | Lens, Light (Replaces: 9781049) |
|
Immediately | $ 71.93 | ||||
| 6 | WP3184533 | Gasket, Len`s (Replaces: 3184533) |
|
Immediately | $ 7.73 | ||||
| 7 | 40A15 | Bulb, Light (Replaces: 8935) |
|
Immediately | $ 1.98 | ||||
| 8 | 9781543 | Assembly, Fan |
|
$ 142.09 | |||||
| 9 | 9751904GM | Baffle, Convection |
|
- | |||||
| 10 | 4167277 | Lock-nut, Cvr.jack |
|
- | |||||
| 11 | 4167266 | Jack Cover |
|
- | |||||
| 12 | 305289 | Gasket |
|
- | |||||
| 13 | 4173575 | Receptacle, Probe |
|
- | |||||
| 14 | 3179672 | Spacer - Tubing |
|
- | |||||
| 17 | 3150144 | Probe |
|
$ 106.70 | |||||
| 18 | 4396923 | Grill, Broiler (Replaces: 420104GM) |
|
Immediately | $ 52.04 | ||||
| 19 | 4396923 | Pan, Broiler (Replaces: 420101GM) |
|
Immediately | $ 52.04 | ||||
| 20 | 9750827 | Rack, Roasting |
|
- | |||||
| 21 | 9750823 | Rack, Standard |
|
- | |||||
| 22 | 9782081 | Sensor |
|
$ 119.40 | |||||
| 23 | 9780269 | Screw, 8-32 X 3/8 |
|
- | |||||
| 24 | 340184 | Screw, 10-16 X 1.5 |
|
$ 12.10 | |||||
| 25 | 9781509 | Screw, 8-32 X 3/8 |
|
- |
