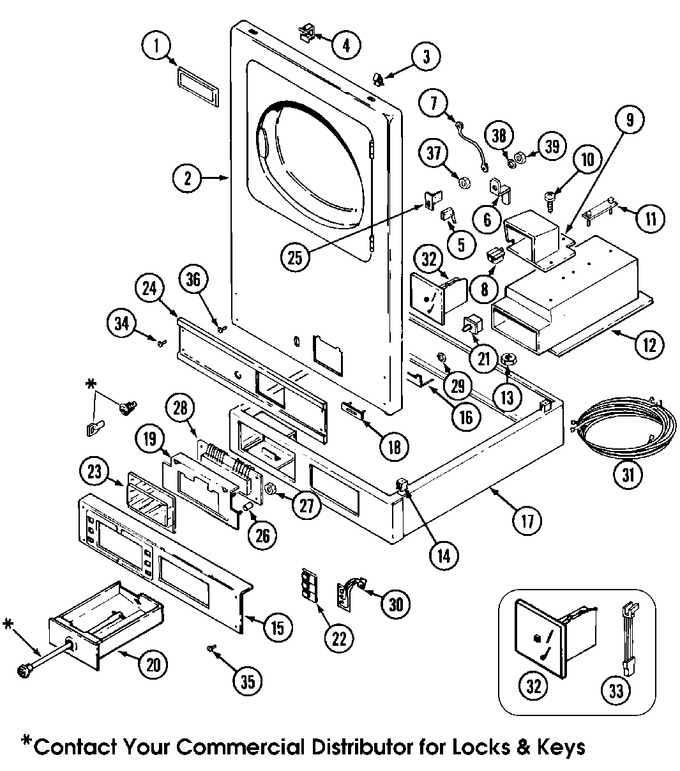

01 - Controls & Upper Panel
02 - Front View
03 - Door
04 - Rear
05 - Tumbler
06 - Heater
07 - Motor Drive
08 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | NLA | Name Plate | A0 |
|
- | ||||
| 002 | 33001447 | (wht) | A1 |
|
- | ||||
| 002 | NLA | Panel, Upper (wht) | A0 |
|
- | ||||
| 003 | WP22001650 | Spring, Fastener (Replaces: 212982) | A0 |
|
Immediately | $ 7.34 | |||
| 004 | Y310376 | Clip, Fastener | A0 |
|
- | ||||
| 005 | 912012 | Screw, Switch | A0 |
|
- | ||||
| 005 | Y306232 | Switch, Access | A0 |
|
- | ||||
| 006 | 314625 | Cam, Locking | A0 |
|
- | ||||
| 007 | Y306712 | Ground Wire, Lock | A0 |
|
- | ||||
| 008 | 314635 | Chute, Coin | A0 |
|
- | ||||
| 009 | NLA | Cover, Coin Drop | A0 |
|
- | ||||
| 010 | 314654 | Bolt, Coin Drop Cover | A0 |
|
- | ||||
| 011 | NLA | Lockwasher, Mounting Strap | A0 |
|
- | ||||
| 012 | NLA | Vault Assembly (wht) | A0 |
|
- | ||||
| 012 | 910387 | Lockwasher, Vault Assembly | A0 |
|
- | ||||
| 013 | WP62739 | Nut, Mounting Strap Cover (Replaces: Y052740) | A0 |
|
$ 6.85 | ||||
| 013 | NLA | Washer, Cover Bolt | A0 |
|
- | ||||
| 014 | 310933 | Clip, Support Assembly | A0 |
|
- | ||||
| 015 | 33001023 | Control, Extrusion (lwr) | A0 |
|
- | ||||
| 016 | 314631 | Bracket, Coin Drop | A0 |
|
- | ||||
| 016 | Y310632 | Screw, Bracket | A0 |
|
- | ||||
| 016 | Y313561 | Screw, Bracket | A0 |
|
$ 5.27 | ||||
| 017 | NLA | Support Assembly (wht) | A0 |
|
- | ||||
| 018 | 306233 | Strap, Coin Acceptor | A0 |
|
- | ||||
| 019 | 33001201 | Plate, Control Mounting | A0 |
|
- | ||||
| 019 | 910186 | Screw, Plate | A0 |
|
- | ||||
| 020 | 308143 | Tray, Coin (wht) | A0 |
|
- | ||||
| 020 | 308143L | (alm) | A0 |
|
- | ||||
| 021 | WPW10131838 | Switch, Vault & Service Door (Replaces: 33001250) | A0 |
|
$ 21.52 | ||||
| 022 | WP33001156 | Button, Push (Replaces: 33001156) | A0 |
|
$ 64.53 | ||||
| 023 | 33001209 | Cover, Display | A0 |
|
$ 22.66 | ||||
| 024 | NLA | Extrusion, Control (upr) | A0 |
|
- | ||||
| 025 | 314634 | Bracket, Access Switch | A0 |
|
- | ||||
| 026 | 33001204 | Stand-off, Control Board | A0 |
|
- | ||||
| 027 | M0282005 | Nut, Control Board (Replaces: 912077) | A0 |
|
$ 7.07 | ||||
| 028 | 33002605 | Board, Control (Replaces: 33001290) | A0 |
|
- | ||||
| 028 | 33001249 | Battery, Control Board | A0 |
|
- | ||||
| 029 | WP486255 | Nut, Coin Drop (Replaces: Y052659) | A0 |
|
$ 5.54 | ||||
| 030 | WP33002449 | Switch, Membrane (Replaces: 33001200) | A0 |
|
$ 74.27 | ||||
| 031 | NLA | (upr) | A0 |
|
- | ||||
| 031 | 314522 | Grommet, Strain Relief | A0 |
|
- | ||||
| 031 | 33001030 | Wire Harness, Main (lwr) | A0 |
|
- | ||||
| 031 | 33001408 | (upr) | A1 |
|
- | ||||
| 031 | 33001409 | (lwr) | A1 |
|
- | ||||
| 031 | 910768 | Strap, Harness | A0 |
|
- | ||||
| 032 | 308121 | Rejector Assembly (25>) | A0 |
|
- | ||||
| 033 | 33001025 | Optic Switch Assembly | A0 |
|
- | ||||
| 033 | 315427 | Screw, Switch Assembly | A0 |
|
- | ||||
| 034 | WPW10131119 | Screw, Switch Assembly (Replaces: 215506) | A0 |
|
$ 6.26 | ||||
| 034 | 315489 | Screw, Front Panel | A0 |
|
- | ||||
| 035 | WPW10131119 | Screw, Extrusion (lwr) (Replaces: 215506) | A0 |
|
$ 6.26 | ||||
| 036 | NLA | Clip, Cabinet Screw | A0 |
|
- | ||||
| 036 | 314666 | Screw, Panel (upr) | A0 |
|
- | ||||
| 037 | W11395752 | Nut, Lock (Replaces: 212328) | A0 |
|
$ 11.74 | ||||
| 038 | WPW10133264 | Washer, Lock (Replaces: 22001354) | A0 |
|
$ 125.12 | ||||
| 039 | 22001355 | Nut, Lock | A0 |
|
- |
