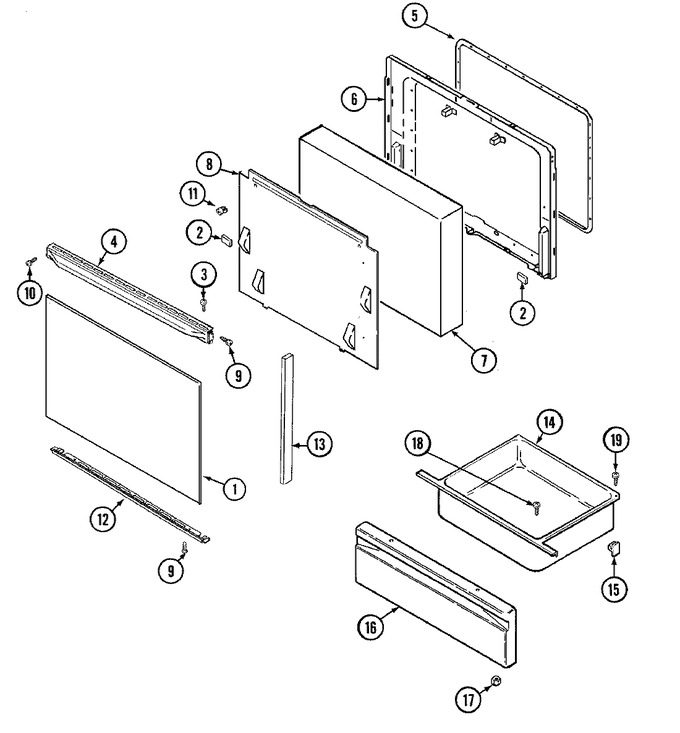

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7902P325-60		Glass, Door (outer-blk)	04	Appelez-nous	-
2	8010P085-60		Spacer, Rubber	04	Appelez-nous	-
3	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)	04			$ 15.94
4	7701P144-60		Handle, Door (blk)	04	Appelez-nous	-
5	WP7212P043-60		Seal, Silicone   (Replaces: 7212P034-60)	04		Immediately	$ 56.83
6	2402W211-19		Lining, Door	04	Appelez-nous	-
7	4804F020-60		Insulation - Rear	04	Appelez-nous	-
8	3601F218-47		Baffle, Door	04	Appelez-nous	-
9	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	04		Immediately	$ 12.62
10	WP3387230		Screw, No.10 X .5 Tya   (Replaces: 7101P274-60)	04		Immediately	$ 7.69
11	7103P045-60		Nut, Nylon	04	Appelez-nous	-
12	7744P078-60		Trim, Door (btm-blk)	04	Appelez-nous	-
13	7744P055-60		End Cap, Oven Door (blk)	04	Appelez-nous	-
14	3405F019-80		Drawer, Storage	04	Appelez-nous	-
15	8004P026-60		Support, Drawer (rear)	04			$ 9.29
16	2416F039-64		Panel, Drawer (alm)	04	Appelez-nous	-
17	WPW10131078		Nut, Lock   (Replaces: 7103P085-60)	04			$ 4.00
18	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	04		Immediately	$ 12.62
19	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	04		Immediately	$ 12.62
