View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

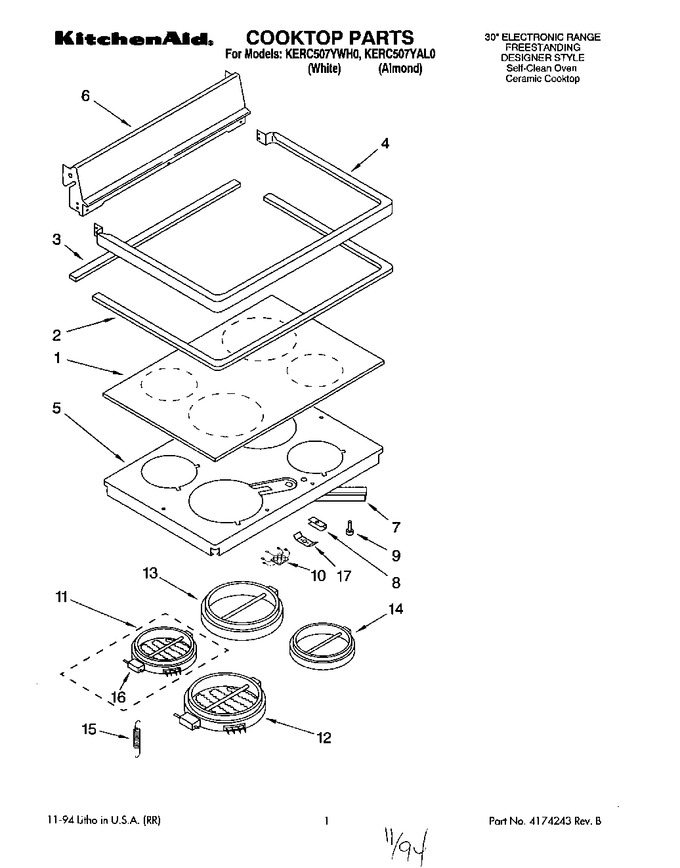

01 - Cooktop, Literature
02 - Control Panel
03 - Door And Drawer
04 - Oven Chassis
05 - Oven
06 - Wiring Harness
07 - Rear Chassis, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9780853 | Cooktop, Ceran (white Mdl.) |
|
- | |||||
| 1 | 9781060 | Cooktop, Ceran (almond Mdl.) |
|
- | |||||
| 2 | WP9780939 | Gasket, Cooktop (front & Sides) (Replaces: 9780939) |
|
Immediately | $ 60.83 | ||||
| 3 | 9780742 | Rear Gasket |
|
- | |||||
| 4 | 4211918 | Frame, Cooktop (white) |
|
- | |||||
| 4 | 4211919 | Frame, Cooktop (almond) |
|
- | |||||
| 4 | 3149333 | Frame, Cooktop (screw, (4) 10ab X 1/2) |
|
$ 5.33 | |||||
| 5 | 9750455 | Support, Element |
|
- | |||||
| 6 | 4211922 | Back Splash (almond) |
|
- | |||||
| 6 | 3149333 | Back Splash (screw (4) 10ab X 1/2``) |
|
$ 5.33 | |||||
| 6 | 4211921 | Back Splash (white Mdl.) |
|
- | |||||
| 7 | 422404 | Brace, Support |
|
- | |||||
| 7 | WP3387230 | Screw (2) 10 X 3/4`` (Replaces: 9780273) |
|
Immediately | $ 7.69 | ||||
| 8 | 9750821 | Support Clips (4) |
|
- | |||||
| 8 | 423248 | Screw, (4) 10 X 3/4`` |
|
- | |||||
| 9 | 238614 | Bumper (4) (Replaces: 9750969) |
|
$ 72.68 | |||||
| 10 | 9780931 | Hot Light Element, Surface |
|
- | |||||
| 11 | 9750752 | 6`` L.r. |
|
- | |||||
| 12 | 9750755 | 9`` L.f. |
|
- | |||||
| 13 | 9750754 | 8`` - Rr |
|
- | |||||
| 14 | W10823693 | 7`` - Rf (Replaces: 9750753) |
|
Immediately | $ 205.87 | ||||
| 15 | 9780679 | Spring (8) |
|
- | |||||
| 16 | 3149124 | Limiter, Temp. (9`` L.f.) |
|
- | |||||
| 16 | 3149129 | Limiter, Temp. (6`` L.r.) |
|
- | |||||
| 16 | 3149123 | Limiter Temp. (8`` - Rr) |
|
- | |||||
| 16 | 3183972 | Limiter Temp. (7`` - Rf) |
|
- | |||||
| 17 | 915720 | Screw, Anchor (2) |
|
- | |||||
| LIT9750520 | Instructions, Installation |
|
- | ||||||
| LIT9750877 | Tech Sheet-k/a |
|
- | ||||||
| LIT3150693 | Cookbook, T/c Ovens |
|
- | ||||||
| LIT9781161 | Use And Care Guide |
|
- | ||||||
| LIT3183790 | Guide-auto Set |
|
- | ||||||
| LIT9780945 | Label, Instruction (lamp Cover) |
|
- | ||||||
| LIT9780689 | Quick Set (oven) |
|
- | ||||||
| LIT9750876 | Wiring Diagram |
|
- |
