Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 LIT9753843 Literature Parts (use & Care Guide) Appelez-nous -
1 LIT3191638 Safer Cooking Tips Appelez-nous -
1 LIT9755632 Literature Parts (installation Instructions) Appelez-nous -
1 LIT9782235 Literature Parts (tech Sheet) Appelez-nous -
1 LIT9752776 Literature Parts (template, Anti-tip) Appelez-nous -
1 LIT4449264 Literature Parts (smart & Easy Guide) Appelez-nous -
1 LIT8300643 Literature Parts (guide, Cleaner Use) Appelez-nous -
2 WP9780939 Gasket, Cooktop (front & Sides)   (Replaces: 9780939) In-Stock Immediately $ 60.83

3 9781614 Rear Gasket Special Order $ 47.02

4 9750456PB Frame, Cooktop Appelez-nous -
5 9753674 Support, Element Appelez-nous -
6 9752337GB Back Splash Appelez-nous -
7 9753675 Brace, Support Appelez-nous -
8 9753691 Support Clips (4) Appelez-nous -
9 238614 Bumper (4)   (Replaces: 9750969) Special Order $ 72.68

10 9781935 Hot Light Appelez-nous -
11 W10823699 Element, Surface (1500w - Rr)   (Replaces: 8523697) In-Stock Immediately $ 145.67

11 WP8523700 Element, Surface (warm Zone)   (Replaces: 9754274) In-Stock Immediately $ 159.08

11 W10823698 Element, Surface (1800w - Lr-rf)   (Replaces: 8523696) In-Stock Immediately $ 175.61

11 W10823692 Element, Surface (1000/2400w - Lf)   (Replaces: 8523693) In-Stock Immediately $ 204.83

12 9781490 Seal Appelez-nous -
14 9753710CB Cooktop, Ceran Appelez-nous -
15 9781460 Rod, Small Ceran Element Appelez-nous -
17 WP9781235 Screw, Anchor   (Replaces: 9781235) Special Order $ 10.76

18 9753040CB Cover Vent Appelez-nous -
19 9781459 Rod, Large Ceran Element Appelez-nous -
20 3149190 Clip, Mounting Appelez-nous -
25 9750767 Gasket Appelez-nous -
26 423248 Screw, 10-16 X 3/4 Appelez-nous -
27 3149333 Screw, 10-16 X 1/2 Special Order $ 5.33

28 9780272 Screw, 10-16 X 1/2 Appelez-nous -
28 9753677 Spring, Warm Zone Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

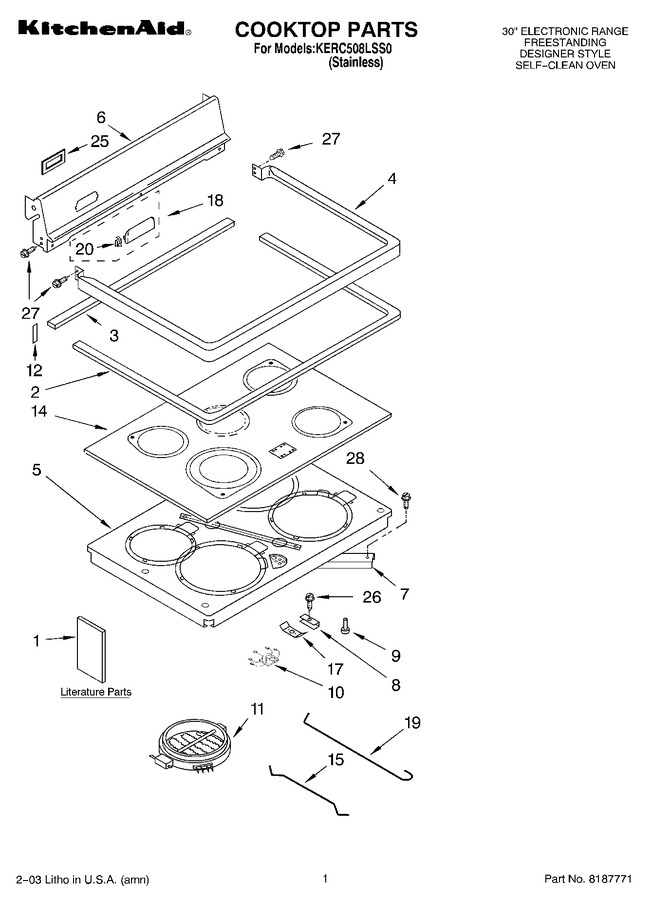

Diagram for KERC508LSS0
