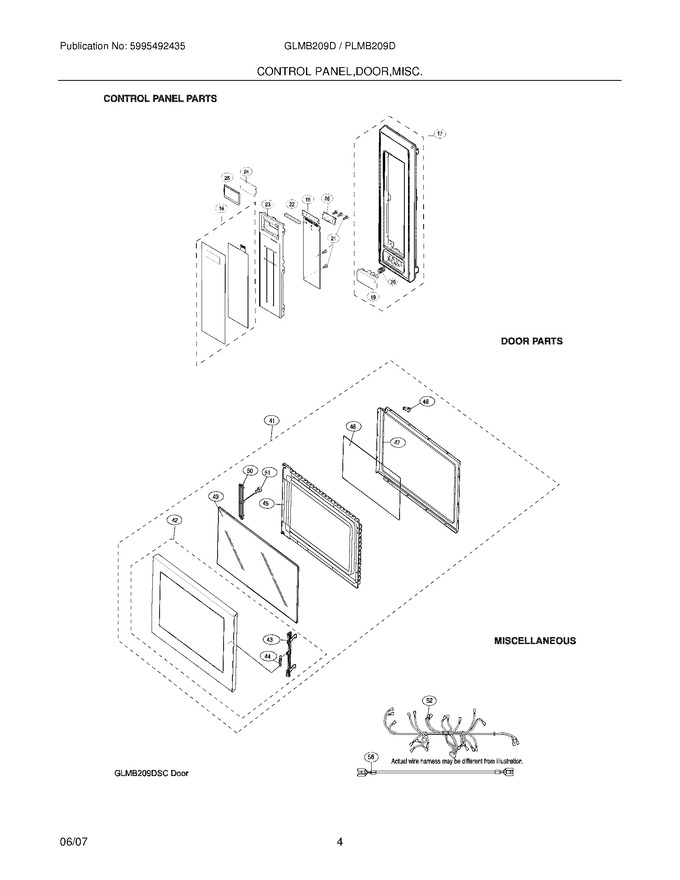

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
17	5304440822		Frame,control Panel ,white		Appelez-nous	-
19	5304440828		Push Button,door Opener ,white		Appelez-nous	-
20	5304440831		Spring,door Button				$ 20.29
21	5304456930		Screw		Appelez-nous	-
22	5304440832		Connector,rubber ,control Board				$ 41.63
23	5304440833		Panel,touch Pad Mount				$ 83.93
26	5304440836		Bracket,pcb Support				$ 44.47
41	5304440849		Door Assy,complete ,white		Appelez-nous	-
42	5304440853		Panel,outer Door ,white ,w/latch		Appelez-nous	-
43	5304441893		Latch,door   (Replaces: 5304440856)			Immediately	$ 48.91
44	5304440316		Spring,door Latch			Immediately	$ 61.00
45	5304440858		Panel,inner Door ,white		Appelez-nous	-
46	5304440860		Seal,door ,film				$ 63.09
47	5304440861		Frame,choke Cover ,inner Door				$ 73.02
48	5304442145		Door Stop		Appelez-nous	-
49	5304440864		Panel,glass ,white ,door Front		Appelez-nous	-
50	5304440862		Door Stop		Appelez-nous	-
51	5304452259		Screw		Appelez-nous	-
F16	5304440820		Control Board,printed Circuit				$ 437.30
F18	5304440825		Switch Assy,touch Control ,white		Appelez-nous	-
F24	5304493204		Led Sheet,backlight   (Replaces: 5304440834)				$ 26.94
F25	5304440835		Lcd,display				$ 73.38
F52	5304452260		Wiring Harness,main		Appelez-nous	-
F58	5304440870		Wire,high Voltage-a		Appelez-nous	-
