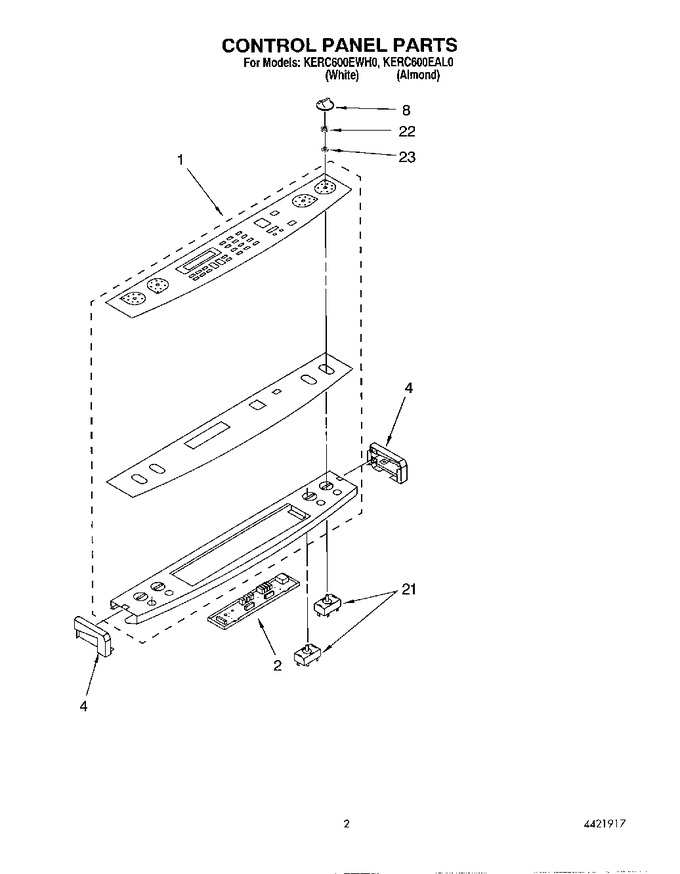

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9752356CW		Console, Glass (white)		Appelez-nous	-
1	9752356CT		Console, Glass (almond)		Appelez-nous	-
2	3190379		Timer, Electronic		Appelez-nous	-
2	9780271		Screw, (2)		Appelez-nous	-
4	9751280FW		End Cap (white, Right)		Appelez-nous	-
4	9751279FT		End Cap (left Hand) (almond)		Appelez-nous	-
4	9751279FW		End Cap (left Hand) (white)		Appelez-nous	-
4	9751280FT		End Cap Right Hand (almond)		Appelez-nous	-
4	9780265		End Cap (left Hand) (screw (4) 10 X 3/8)		Appelez-nous	-
8	4211913		Knobs, Control (almond)				$ 19.39
8	WP9750372FW		Knobs, Control (white)   (Replaces: 4211909)				$ 17.99
8	4211983		Knobs, Control (black)		Appelez-nous	-
21	9751364		Switch, Infinite (1250-1500w, Lr)				$ 72.83
21	9751362		Switch, Infinite (2100-2600w, Lf)				$ 72.53
21	9751363		Switch, Infinite (1700w, Rf)				$ 71.70
21	8203536		Switch, Infinite (dual Element, Rr)   (Replaces: 9751758)			Immediately	$ 183.74
22	9751711		Nut, Mounting (dual Element)		Appelez-nous	-
22	4211830		Nut, Mounting (single Element)		Appelez-nous	-
23	9781455		Seal, Switch (4)		Appelez-nous	-
