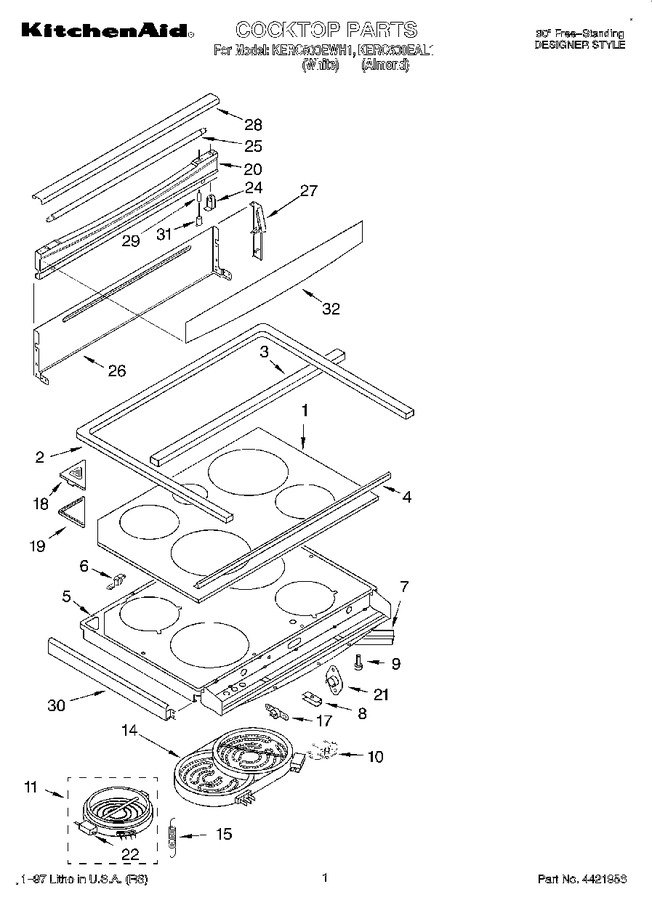

01 - Cooktop


02 - Control Panel


03 - Door And Drawer


04 - Oven Chassis


05 - Oven


06 - Rear Chassis, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9751752		Cooktop, Ceran (white)		Appelez-nous	-
1	9751753		Cooktop, Ceran (almond)		Appelez-nous	-
2	WP9780939		Gasket, Cooktop   (Replaces: 9780939)			Immediately	$ 60.83
3	9751478		Gasket, Console		Appelez-nous	-
4	9780742		Gasket, Cooktop		Appelez-nous	-
5	9781465		Support, Element		Appelez-nous	-
6	9780265		Screw		Appelez-nous	-
6	9751629		Bracket, Pivot		Appelez-nous	-
7	422404		Brace, Support		Appelez-nous	-
8	9751871		Screw		Appelez-nous	-
8	9750821		Clip, Support (4)		Appelez-nous	-
9	238614		Bumper, Rubber   (Replaces: 9750969)				$ 72.68
10	9781497		Hot Light		Appelez-nous	-
11	3189897		Element, Surface (2400w - Lf)		Appelez-nous	-
11	3189895		Element, Surface (1700w - Rf)		Appelez-nous	-
11	3189894		Element, Surface (1400w - Lr)		Appelez-nous	-
14	9752233		2500w - Rr		Appelez-nous	-
15	9781211		Spring (15)		Appelez-nous	-
17	341196		Thermo-disc				$ 33.17
18	9751800		Cover, Vent		Appelez-nous	-
19	9751841		Gasket, Vent Cover		Appelez-nous	-
20	9751266GW		Backsplash (white)		Appelez-nous	-
20	9751266GT		Backsplash (almond)		Appelez-nous	-
21	WP9759944		Bimetal   (Replaces: 9751984)			Immediately	$ 121.57
22	3190251		Limiter, Temp. (2400 W - Lf)		Appelez-nous	-
22	3190253		Limiter, Temp. (1400 W - Lr)		Appelez-nous	-
22	3190250		Limiter, Temp. (2500w - Rr)		Appelez-nous	-
24	9750273		Receptacle, Lamp		Appelez-nous	-
25	WP95292		Light, Fluorescent   (Replaces: 422581)			Immediately	$ 121.45
26	9751664		Cover, Backsplash		Appelez-nous	-
27	9751267FT		(endcap, Backsplash (left Hand)) (almond)		Appelez-nous	-
27	9751268FW		Endcap, Backsplash (white (right))		Appelez-nous	-
27	9751268FT		Endcap, Backsplash (almond (right))		Appelez-nous	-
27	9751267FW		(endcap, Backsplash (left Hand)) (white)		Appelez-nous	-
27	3149333		(endcap, Backsplash (left Hand)) (screw (4))				$ 5.33
28	9751633		Cover, Light (almond)		Appelez-nous	-
28	9751327		Cover, Light (white)		Appelez-nous	-
29	9781118		Starter, Light		Appelez-nous	-
30	9751275PT		Trim, Cooktop (almond (right))		Appelez-nous	-
30	9751276PW		(trim, Cooktop (left Hand)) (white)		Appelez-nous	-
30	9751276PT		Trim, Cooktop (left Hand) (almond)		Appelez-nous	-
30	9751275PW		Trim, Cooktop (white (right))		Appelez-nous	-
31	9750866		Starter, Holder		Appelez-nous	-
32	9781154		Glass, Backsplash		Appelez-nous	-
