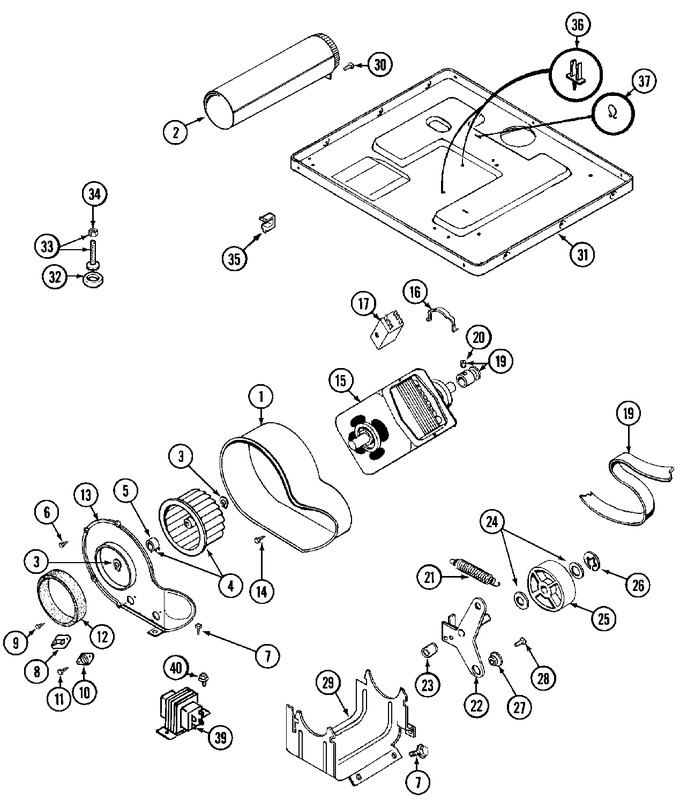

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	Y312893		Housing, Blower	10			$ 55.67
002	Y303442		Exhaust Duct Assembly	10	Appelez-nous	-
003	WP9703438		Ring, Retaining   (Replaces: 410233)	10		Immediately	$ 3.81
004	Y303836		Blower Wheel Assembly	10		Immediately	$ 32.35
005	WP312967		Clamp, Blower Wheel   (Replaces: 312967)	10		Immediately	$ 10.68
006	WPW10116751		Screw, Housing Cover   (Replaces: Y312961)	10			$ 6.74
007	Y313561		Screw, Housing Cover	10			$ 5.27
008	306056		Thermistor Temp Control	10			$ 39.41
008	WP33303391		Thermostat, Cycling (155 Deg)   (Replaces: Y303391)	10			$ 127.00
009	WP90767		Screw, Thermostat   (Replaces: 211294)	10		Immediately	$ 7.04
010	WP306604		Cut-off, Thermal   (Replaces: 306604)	10		Immediately	$ 37.77
011	NLA		Screw, Thermal Cut-off	10	Appelez-nous	-
012	WPY312901		Seal, Housing Cover   (Replaces: Y312901)	10			$ 60.70
013	314778		Cover, Blower Housing	10	Appelez-nous	-
014	314818		Screw, Blower Housing	10	Appelez-nous	-
015	W10410999		Motor   (Replaces: Y303358)	10		Immediately	$ 166.30
016	WPY015825		Clip, Motor   (Replaces: Y015825)	10			$ 21.03
017	306207		(prod. No. 303358-8 & 303358-9)		Appelez-nous	-
017	NLA		Switch, Motor External Start	10	Appelez-nous	-
017	Y303877		Switch, Motor External Start (no.303358-2, 303358-4,303358-7)	10	Appelez-nous	-
017	Y303879		Switch, Motor External Start (prod. No. 303358 & 303358-6)	10	Appelez-nous	-
018	WPY312959		Belt, Tumbler & Motor   (Replaces: Y312959)	10		Immediately	$ 30.66
019	Y305185		Pulley, Motor (w/set Screw)	10	Appelez-nous	-
020	Y053241		Screw, Set	10	Appelez-nous	-
021	Y303945		Idler Spring Assembly	10	Appelez-nous	-
022	WP6-3033630		Idler Arm & Shaft Assembly   (Replaces: Y303363)	10		Immediately	$ 68.43
023	WPW10116756		Spacer, Idler Bracket   (Replaces: Y313582)	10			$ 43.70
024	WPY312527		Washer, Idler Shaft (qty-1)   (Replaces: Y312527)	10		Immediately	$ 10.01
025	WP6-3037050		Pulley, Idler   (Replaces: Y303705)	10		Immediately	$ 19.89
026	WP354987		Ring, Retaining   (Replaces: 312958)	10		Immediately	$ 10.58
027	WP315772		Sleeve, Idler Arm ----s   (Replaces: Y312894)	10		Immediately	$ 10.39
028	WPY014874		Screw, Idler Arm   (Replaces: Y014874)	10			$ 6.98
029	NLA		Support, Motor	10	Appelez-nous	-
030	Y310632		Screw, Exhaust Duct	10	Appelez-nous	-
031	Y305084		Base Assembly	10	Appelez-nous	-
032	Y314137		Foot, Rubber	10			$ 14.08
033	WP233550		Adjustable Leg & Nut   (Replaces: Y305086)	10			$ 7.16
034	WP62739		Nut, Leg   (Replaces: Y052740)	10			$ 6.85
035	Y310376		Clip, Cable	10	Appelez-nous	-
036	315471		Retainer, Wire	10	Appelez-nous	-
037	410490		Spring, Wire Harness	10	Appelez-nous	-
038	WPW10116751		Screw, Spacer   (Replaces: Y312961)	10			$ 6.74
039	306199		Relay, Heater	10			$ 42.40
040	WP3177991		Screw   (Replaces: Y251119)	10		Immediately	$ 6.47
