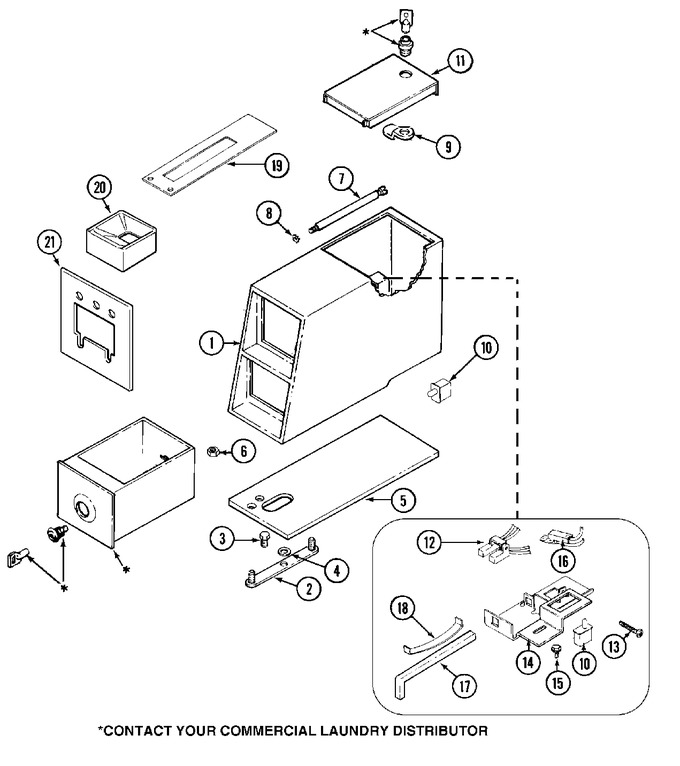

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	WPW10529176		Vault, Coin (wht)   (Replaces: 22001871)	10			$ 273.48
002	22001810		Strap, Mounting	10	Appelez-nous	-
003	WP90767		Screw, Mounting Strap   (Replaces: 211294)	10		Immediately	$ 7.04
004	910309		Washer, Strap Screw	10	Appelez-nous	-
005	22001870		Gasket, Coin Vault (wht)	10	Appelez-nous	-
006	WP62739		Nut, Case Mounting   (Replaces: Y052740)	10			$ 6.85
007	WP8576635		Bolt, Locking   (Replaces: 22001903)	10		Immediately	$ 67.13
008	910387		Lockwasher, Locking Bolt	10	Appelez-nous	-
009	NLA		Cam, Locking	10	Appelez-nous	-
010	WPW10131838		Switch, Sensor   (Replaces: 33001250)	10			$ 21.52
010	912012		Screw, Sensor Switch	10	Appelez-nous	-
011	22001910		Door, Access (wht)	10	Appelez-nous	-
012	WPW10247389		Switch Assy., Optic   (Replaces: 22001965)	10		Immediately	$ 104.31
013	WP3395530		Screw, Optic Switch   (Replaces: 314665)	10			$ 6.93
014	33001253		Bracket, Sensor Switch	10	Appelez-nous	-
015	211605		Clip, Bracket Screw	10	Appelez-nous	-
015	WP90767		Screw, Switch Bracket   (Replaces: 212276)	10		Immediately	$ 7.04
016	22001966		Harness, Sensor Switch	10	Appelez-nous	-
017	216442		Rod, Actuator	10			$ 44.45
018	33001252		Spring, Switch Rod	10	Appelez-nous	-
019	22001812		Actuator Kit	10	Appelez-nous	-
020	WPW10529176		Chute, Coin   (Replaces: 22001878)	10			$ 273.48
021	22001879		Plate, Adapter (wht)	10	Appelez-nous	-
022	NLA		Brace, Coin Slide	10	Appelez-nous	-
