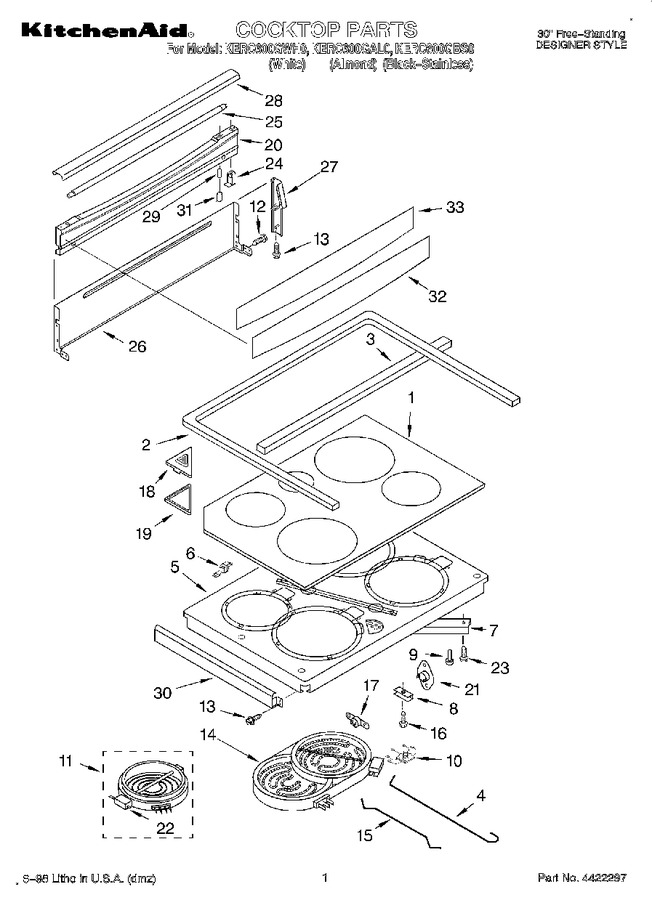

01 - Cooktop
02 - Door And Drawer
03 - Oven Chassis
04 - Oven
05 - Rear Chassis
06 - Control Panel, Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9751754 | Cooktop, Ceran (black) |
|
- | |||||
| 1 | 9751752 | Cooktop, Ceran (white) |
|
- | |||||
| 1 | 9751753 | Cooktop, Ceran (almond) |
|
- | |||||
| 2 | WP9780939 | Gasket, Cooktop (Replaces: 9780939) |
|
Immediately | $ 60.83 | ||||
| 2 | 9781614 | Gasket, Cooktop |
|
$ 47.02 | |||||
| 3 | 9751478 | Gasket, Console |
|
- | |||||
| 4 | 9781459 | Rod, Large Element |
|
- | |||||
| 5 | 9781548 | Support, Element |
|
- | |||||
| 6 | 9780265 | Screw |
|
- | |||||
| 6 | 9751629 | Bracket, Pivot |
|
- | |||||
| 7 | 9781553 | Brace, Support |
|
- | |||||
| 8 | 9750821 | Clip, Support (4) |
|
- | |||||
| 9 | 238614 | Bumper, Rubber (Replaces: 9750969) |
|
$ 72.68 | |||||
| 10 | 9781497 | Hot Light |
|
- | |||||
| 11 | 3189895 | Element, Surface (1700w - Rf) |
|
- | |||||
| 11 | 3189897 | Element, Surface (2400w - Lf) |
|
- | |||||
| 11 | 3189894 | Element, Surface (1400w - Lr) |
|
- | |||||
| 12 | 3149333 | Screw |
|
$ 5.33 | |||||
| 13 | 9780265 | Screw |
|
- | |||||
| 14 | 9752233 | 2500w - Rr |
|
- | |||||
| 15 | 9781460 | Rod, Small Element |
|
- | |||||
| 16 | 9751871 | Screw |
|
- | |||||
| 17 | 341196 | Thermo-disc |
|
$ 33.17 | |||||
| 18 | 9751800 | Cover, Vent |
|
- | |||||
| 19 | 9751841 | Gasket, Vent Cover |
|
- | |||||
| 20 | 9751266GW | Backsplash (white) |
|
- | |||||
| 20 | 9751266GB | Backsplash (black) |
|
- | |||||
| 20 | 9751266GT | Backsplash (almond) |
|
- | |||||
| 21 | WP9759944 | Bimetal (Replaces: 9751984) |
|
Immediately | $ 121.57 | ||||
| 22 | 3190251 | Limiter, Temp. (2400 W - Lf) |
|
- | |||||
| 22 | 3190253 | Limiter, Temp. (1400 W - Lr) |
|
- | |||||
| 22 | 3190250 | Limiter, Temp. (2500w - Rr) |
|
- | |||||
| 23 | 9780272 | Screw |
|
- | |||||
| 24 | 9750273 | Receptacle, Lamp |
|
- | |||||
| 25 | WP95292 | Light, Fluorescent (Replaces: 422581) |
|
Immediately | $ 121.45 | ||||
| 26 | 9751664 | Cover, Backsplash |
|
- | |||||
| 27 | 3149333 | Endcap, Backsplash (screw (4)) |
|
$ 5.33 | |||||
| 27 | 9751268FW | Endcap, Backsplash (white (right)) |
|
- | |||||
| 27 | 9751268FT | Endcap, Backsplash (almond (right)) |
|
- | |||||
| 27 | 9751268FB | Endcap, Backsplash (black (right)) |
|
- | |||||
| 27 | 9751267FW | Endcap, Backsplash (white (left)) |
|
- | |||||
| 27 | 9751267FT | Endcap, Backsplash (almond (left)) |
|
- | |||||
| 27 | 9751267FB | Endcap, Backsplash (black (left)) |
|
- | |||||
| 28 | 9751632 | Cover, Light (black) |
|
- | |||||
| 28 | 9751633 | Cover, Light (almond) |
|
- | |||||
| 28 | 9751327 | Cover, Light (white) |
|
- | |||||
| 29 | 9781118 | Starter, Light |
|
- | |||||
| 30 | 9751276PW | Trim, Cooktop (white (left)) |
|
- | |||||
| 30 | 9751276PB | Trim, Cooktop (black, Left) |
|
- | |||||
| 30 | 9751275PW | Trim, Cooktop (white (right)) |
|
- | |||||
| 30 | 9751275PT | Trim, Cooktop (almond (right)) |
|
- | |||||
| 30 | 9751275PB | Trim, Cooktop (black (right)) |
|
- | |||||
| 30 | 9751276PT | Trim, Cooktop (almond (left)) |
|
- | |||||
| 31 | 9750866 | Starter, Holder |
|
- | |||||
| 32 | 9753292 | Glass, Backsplash ((black)) |
|
$ 140.48 | |||||
| 32 | 9781154 | Glass, Backsplash ((white)) |
|
- | |||||
| 33 | 9753291 | Panel, Backguard (stainless) |
|
- |
