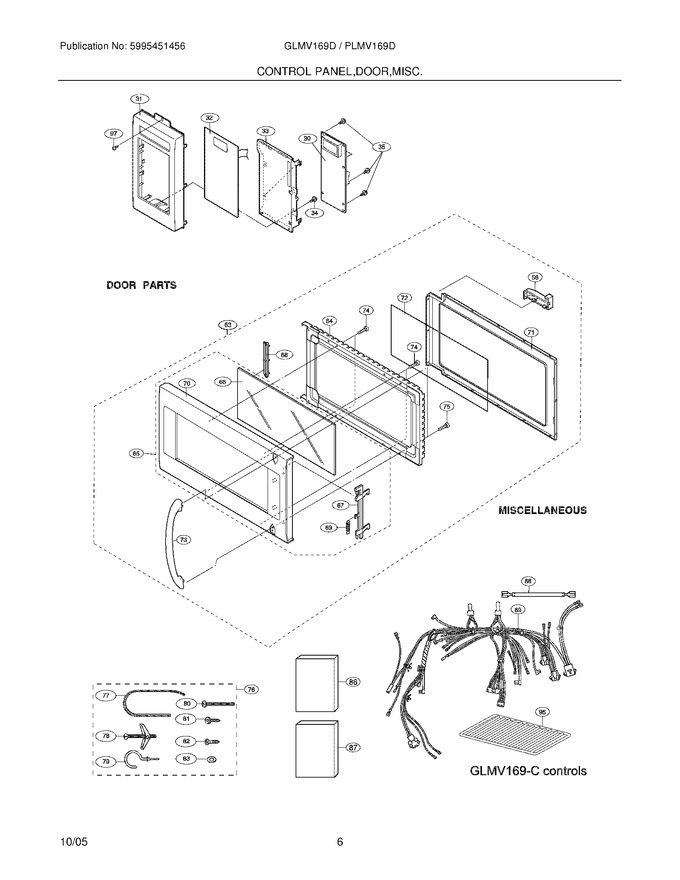

05 - Control Panel Door Misc
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 31 | 5304445604 | Frame,control Panel ,black |
|
$ 130.88 | |||||
| 33 | 5304440281 | Panel,control Mount |
|
$ 33.39 | |||||
| 34 | 5303319584 | Screw,control Panel ,3mm X 10mm |
|
- | |||||
| 35 | 5304440282 | Screw,control Board ,3mm X 10mm |
|
- | |||||
| 56 | 5304440300 | Door Stop |
|
- | |||||
| 63 | 5304441374 | Door Assy,complete ,black ,with Handle |
|
$ 704.13 | |||||
| 64 | 5304440305 | Panel,inner Door ,black |
|
$ 299.20 | |||||
| 65 | 5304440308 | Panel Assy,outer Door ,black ,w/glass & Latch |
|
- | |||||
| 66 | 5304440311 | Panel,glass ,door Front |
|
$ 182.70 | |||||
| 67 | 5304440314 | Latch,door |
|
Immediately | $ 51.13 | ||||
| 68 | 5304440315 | Clip,glass Retainer ,door |
|
$ 3.81 | |||||
| 69 | 5304440316 | Spring,door Latch |
|
Immediately | $ 61.00 | ||||
| 70 | 5304451829 | Frame,outer Door ,black |
|
- | |||||
| 71 | 5304440320 | Frame,choke Cover ,inner Door |
|
- | |||||
| 72 | 5304440321 | Seal,door ,film |
|
- | |||||
| 73 | 5304440323 | Handle,door ,black |
|
$ 129.49 | |||||
| 74 | 5304451561 | Screw,4mm X 8mm (Replaces: 5303319634) |
|
$ 16.63 | |||||
| 75 | 5304440326 | Screw,4mm X 12mm |
|
$ 12.65 | |||||
| 76 | 5303319625 | Hardware,installation ,kit |
|
$ 163.64 | |||||
| 77 | 5303318761 | Sleeve,power Cord ,grommet |
|
$ 25.05 | |||||
| 78 | 5303318762 | Screw,toggle |
|
$ 11.71 | |||||
| 79 | 5303322979 | Hook,screw-in ,cord Holder |
|
- | |||||
| 80 | 5304453895 | Screw,5mm X 60mm (Replaces: 5303318764) |
|
$ 16.68 | |||||
| 81 | 5303318767 | Screw,4mm X 12mm |
|
- | |||||
| 82 | 5303318765 | Screw,wood ,5mm X 35 Mm ,(6) |
|
- | |||||
| 83 | 5303318766 | Washer,flat ,30mm ,(2) |
|
$ 19.74 | |||||
| 86 | 5304451830 | Template,installation ,top |
|
- | |||||
| 87 | 5304451831 | Template,installation ,wall |
|
- | |||||
| 95 | 5304440338 | Rack,microwave Oven ,wire |
|
$ 256.10 | |||||
| 97 | 5304440340 | Screw,4mm X 12mm |
|
- | |||||
| F30 | 5304440245 | Control Board,printed Circuit |
|
- | |||||
| F32 | 5304443989 | Touch Control,key Pad ,black |
|
$ 163.02 | |||||
| F88 | 5304440331 | Wire,high Voltage-a |
|
- | |||||
| F89 | 5304451832 | Wiring Harness,main-a |
|
- |
