SELECT A DIAGRAM

01 - Cooktop


02 - Door And Drawer


03 - Oven Chassis

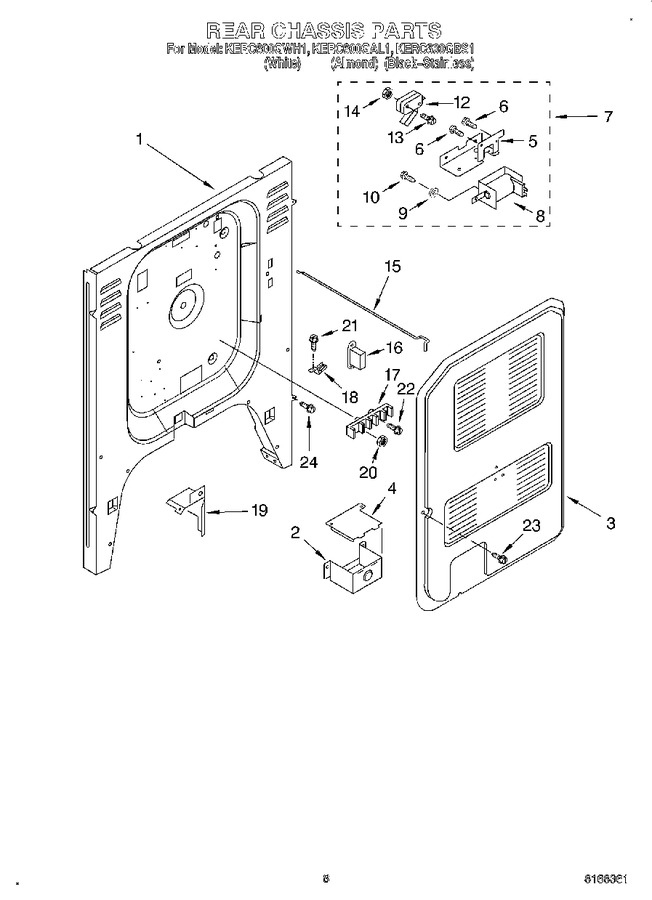

04 - Oven


05 - Rear Chassis


06 - Control Panel, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9751051		Back Panel, Chassis		Appelez-nous	-
2	9752344		Box, Terminal		Appelez-nous	-
3	9751353		Panel, Rear Cover		Appelez-nous	-
4	9752345		Cover, Terminal Box		Appelez-nous	-
5	9751418		Bracket, Lock		Appelez-nous	-
6	9780265		Screw		Appelez-nous	-
7	9751439		Oven Lock Assembly		Appelez-nous	-
8	9751590		Solenoid		Appelez-nous	-
9	422222		Screw		Appelez-nous	-
10	424238		Nut		Appelez-nous	-
12	9751763		Switch, Interlock		Appelez-nous	-
13	9750887		Screw		Appelez-nous	-
14	9750888		Nut		Appelez-nous	-
15	9750523		Rod, Lock		Appelez-nous	-
16	3191044		Ballast, Light		Appelez-nous	-
16	424238		Washer		Appelez-nous	-
17	WP8203546		Terminal Block   (Replaces: 258076)			Immediately	$ 27.12
18	3169573		Strap, Ground		Appelez-nous	-
18	313660		Clip, (1)		Appelez-nous	-
19	9751798		Vent Back, Oven		Appelez-nous	-
20	WP112432		Nut   (Replaces: 112432)				$ 7.16
21	WP681414		Screw, Grounding   (Replaces: 690989)			Immediately	$ 7.07
22	98884		Screw		Appelez-nous	-
23	423247		Screw		Appelez-nous	-
24	340184		Screw				$ 12.10

    View Diagram in Separate Window       Print Part List
