View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Control Center Shroud
02 - Control Center
03 - Front
04 - Top Cover (canada)
05 - Door
06 - Rear
07 - Tumbler
08 - Heater
09 - Motor Drive

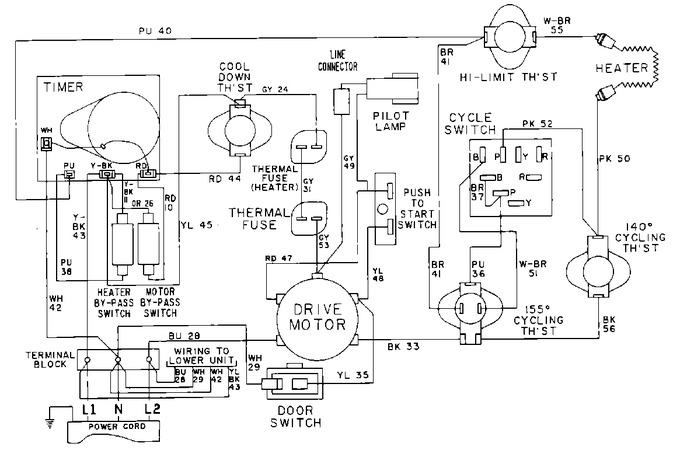

10 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | NLA | Wiring Information | 10 |
|
- |
