SELECT A DIAGRAM

01 - Cover


03 - Oven Cabinet

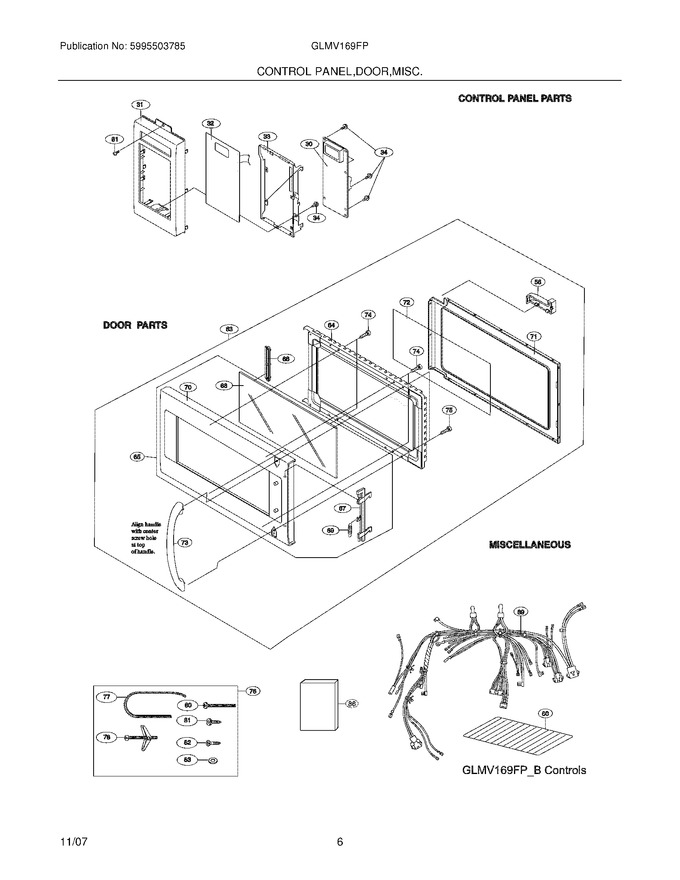

05 - Control Panel/door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
31	5304456928		Frame,control Panel ,black		Appelez-nous	-
33	5304440281		Panel,control Mount				$ 33.39
34	5304456930		Screw,3 Mm X 10 Mm		Appelez-nous	-
56	5304440300		Door Stop		Appelez-nous	-
60	5304440338		Rack,microwave Oven ,wire				$ 256.10
64	5304440305		Panel,inner Door ,black				$ 299.20
65	5304440308		Panel Assy,outer Door ,black ,w/glass & Latch		Appelez-nous	-
66	5304440311		Panel,glass ,door Front				$ 182.70
67	5304440314		Latch,door			Immediately	$ 51.13
68	5304440315		Clip,glass Retainer ,door				$ 3.81
69	5304440316		Spring,door Latch			Immediately	$ 61.00
70	5304451829		Frame,outer Door ,black		Appelez-nous	-
71	5304440320		Frame,choke Cover ,inner Door		Appelez-nous	-
72	5304440321		Seal,door ,film		Appelez-nous	-
73	5304462866		Handle,door ,black		Appelez-nous	-
74	5304451561		Screw,4 Mm X 8 Mm				$ 16.63
75	5304456146		Screw,4 Mm X 12 Mm				$ 3.40
76	5303319625		Hardware,installation ,kit				$ 163.64
77	5303318761		Sleeve,power Cord ,grommet				$ 25.05
78	5303318762		Screw,toggle				$ 11.71
80	5304453895		Screw,5mm X 85mm				$ 16.68
81	5304451553		Screw,4 Mm X 12 Mm				$ 14.89
82	5304453723		Screw,5mm X 35mm				$ 13.28
83	5304453724		Washer				$ 12.68
86	5304451830		Template,installation ,top		Appelez-nous	-
86	5304464350		Template,installation ,wall				$ 26.62
F30	5304440245		Control Board,printed Circuit		Appelez-nous	-
F32	5304443989		Touch Control,key Pad ,black				$ 163.02
F63	5304462864		Door Assy,black ,w/handle		Appelez-nous	-
F89	5304461378		Wiring Harness,main-a		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
