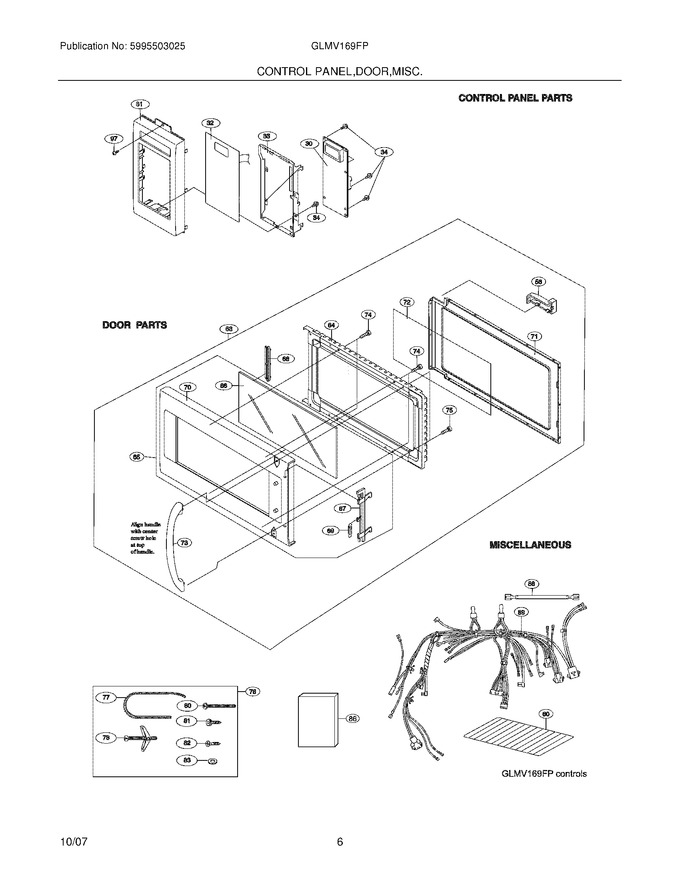

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
31	5304456929		Frame,control Panel ,white		Appelez-nous	-
33	5304440281		Panel,control Mount				$ 33.39
34	5304456930		Screw,6mm X 8mm		Appelez-nous	-
56	5304440300		Door Stop		Appelez-nous	-
60	5304440338		Rack,microwave Oven ,wire				$ 256.10
64	5304440306		Panel,inner Door ,white		Appelez-nous	-
65	5304440309		Panel Assy,outer Door ,white ,w/glass & Latch		Appelez-nous	-
66	5304440312		Panel,glass ,door Front		Appelez-nous	-
67	5304440314		Latch,door			Immediately	$ 51.13
68	5304440315		Clip,glass Retainer ,door				$ 3.81
69	5304440316		Spring,door Latch			Immediately	$ 61.00
70	5304440318		Frame,outer Door ,white		Appelez-nous	-
71	5304440320		Frame,choke Cover ,inner Door		Appelez-nous	-
72	5304440321		Seal,door ,film		Appelez-nous	-
73	5304462867		Handle,door ,white		Appelez-nous	-
74	5304451561		Screw,4 Mm X 8 Mm				$ 16.63
75	5304456146		Screw,4 Mm X 12 Mm				$ 3.40
76	5303319625		Hardware,installation ,kit				$ 163.64
77	5303318761		Sleeve,power Cord ,grommet				$ 25.05
78	5303318762		Screw,toggle				$ 11.71
80	5304453722		Screw,5mm X 60mm				$ 10.53
81	5304451553		Screw,4 Mm X 12 Mm				$ 14.89
82	5303318765		Screw,wood ,5mm X 35 Mm ,(6)		Appelez-nous	-
83	5303318766		Washer,flat ,30mm ,(2)				$ 19.74
86	5304451830		Template,installation ,top		Appelez-nous	-
86	5304451831		Template,installation ,wall		Appelez-nous	-
F30	5304440245		Control Board,printed Circuit		Appelez-nous	-
F32	5304443991		Touch Control,key Pad ,white				$ 143.27
F63	5304462865		Door Assy,white ,w/handle		Appelez-nous	-
F88	5304440331		Wire,high Voltage-a		Appelez-nous	-
F89	5304451832		Wiring Harness,main-a		Appelez-nous	-
